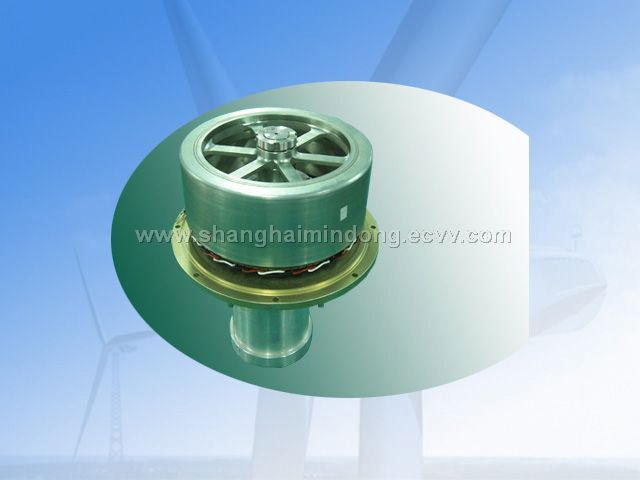

Wind Driven Motor

Characteristics:
Light in weight
Ironless
High pressure resistance
Long serving life
Higher power output
High rotate speed
No cogging or wire winding
Rated power output: 1000W
Peak power output: 2000W
Rated voltage: 222.2V
Rated torque: 13.88Nm
Rated current: 1.55A
Rated rotate speed: 688rpm
Instantaneous peak torque: 17.91Nm
Instantaneous peak current: 2.00A
Instantaneous peak rotate speed: 688rpm
EMF voltage constant: 1032.26V/k rpm
Inductance constant: 0.7273
Weight: 12kg

Place of Origin:	Shanghai Shanghai in China
Model No:	wind driven motor1
Brand Name:	Mindong
