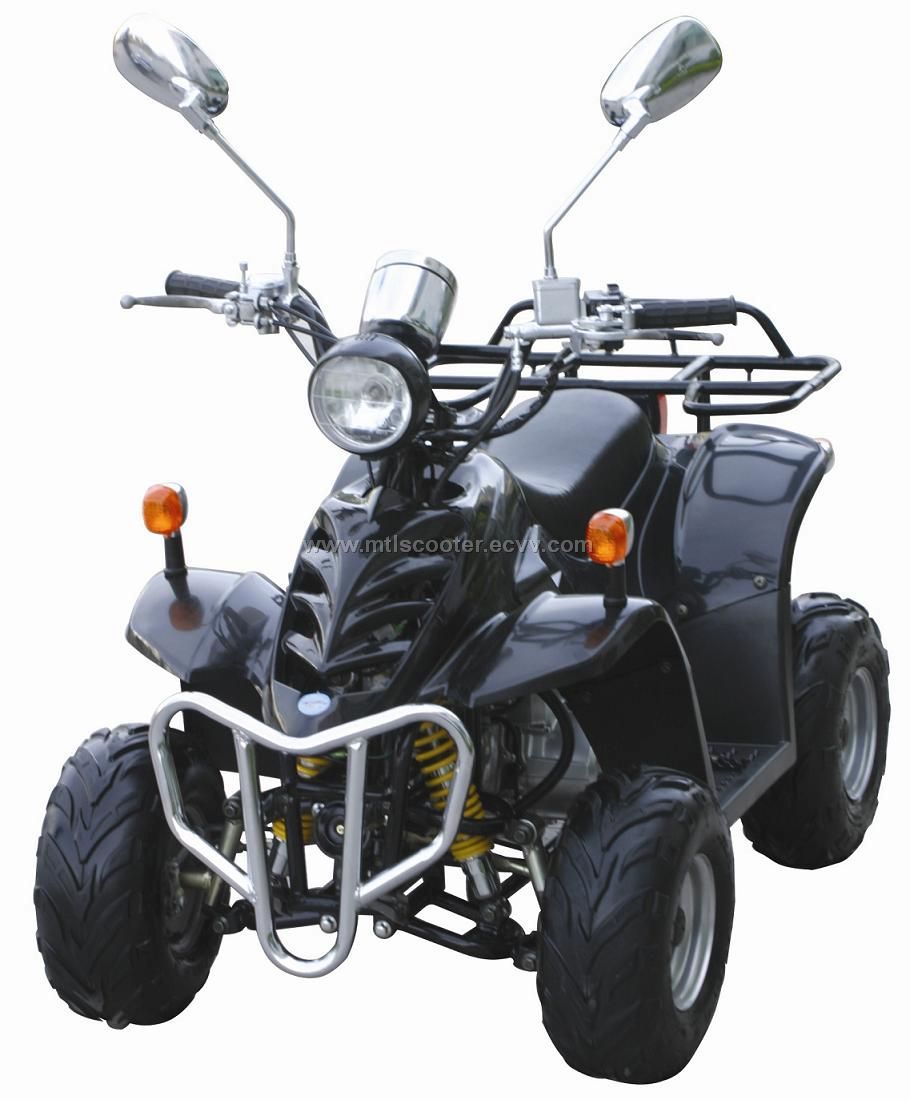

EEC ATV (50CC)

Specifications:
1) Dimensions (L x W x H) (mm): 1,240 x 745 x 1,100mm
2) Wheel base (mm): 820
3) Ground clearance (mm): 70
4) Max. speed (km/h): >45
5) Brake method (F/R): double drum/disc
6) Tire size (F/R): 145 x 70-6 / 145 x 70-6
7) Seat height (mm): 575
8) Suspension (front): swing-aim suspension
9) Suspension (rear): complete suspension
10) Fuel capacity: 3.5L

Engine specifications:
1) Engine type: 50cc, 1-cylinder, air-cooled, 4-stroke
2) Bore x stroke (mm): 39 x 41.4
3) Piston swept volume (ml): 48ml
4) Compressing ratio: 8.8:1
5) Max. power and speed: 2.0kW/7,500rpm
6) Max. torque: 2.5N.m/6,000rpm
7) Starting method: electric
8) Ignition: CDI
9) Transmission: 4-speed, manual clutch, chain, 420H

Packing:
Carton with steel frame
Carton dimensions: 1,150 x 690 x 590mm
N.W.: 79kg
G.W.: 89kg

Conveyance:
Qty/40' HQ: 135pcs

Place of Origin:	Zhejiang in China
Model No:	50CC
Brand Name:	MTLATV-50cc,EEC
Package:	132pcs/40'HQ
Delivery Time:	within 20 days
