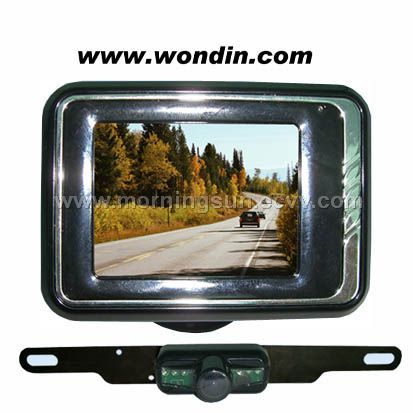

Car Rearview System

1. Mini camera
2 Wireless transmitter and receiver
3.Beautiful appearance
4.2.5'' color LCD
5.Monitor can be put in the platform at random.
6.If you car DVD has USB port and SD slot but no its own monitor, we can add an extra wireless transmitter inside it. So, when USB disk or SD card is ed  DVD, contents in the disk or SD card will be received and shown on the monitor.
7.Easy for installing.
8.Monitor parameter: power supply:DC12V
                power consumption:200mA
                transmission frequency:ISM2,400-2,483MHz
                validity pixel:960*240
                monitor:2.5''
                dimension:90*65*20cm
                weight:130g
9.Camera parameter:power supply:DC12V
                power consumption:100mA
                transmission frequency:ISM2,400-2,483MHz
                picture pixel:3000,000 point
                horizontal definition:380TV line
                minumum illumination:1.0Lux(F1.2)
                CMOS (420 lines )
                Horizontal viewing angle: 150 degrees;
                Vertical viewing angle:150 degrees;
                Wireless transmission distance:15--20 meters;
                The picture format :NTSC;
                The lens is super-wide ( 2.1mm);

                Dimension:260*35*30cm
                Weight:190
10.packing:20pcs/ 11.5kg/ carton; carton size:43*33*45cm

Place of Origin:	Guangdong Shenzhen in China
Model No:	WIN-301
Brand Name:	wondin
Minimum Order:	100
Supply Ability:	1000 per day
Package:	neutral giftbox
Delivery Time:	7-15
