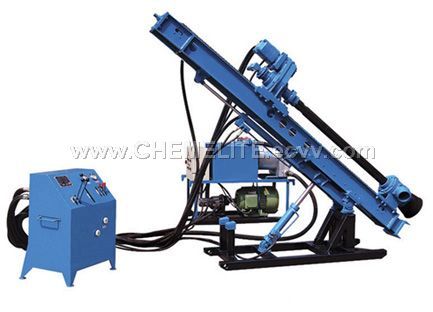

Anchoring Drill (CHMGY60A)

* Dia. Of hole 110~150MM

* Depth of hole <=60M

* Push length 1. 5 M

* Working pressure 0.7-1.2 MPa

* Air comsumption >=13 M3/Min

* Spec of the drill rod 89*1500mm

* Angle -13~+94?

* Rotate speed 38/70 r/min

* Rating thrust force 30KN

* Rating lifting 45KN

* Max torque 2500Nm

* Overall dimension mainframe 3100*1166*1820 mm(transportation)

* Pumping station 1580*656*1048 mm

* Supporting Drive electromotor 22Kw

* Compressor >=13 M3/Min
