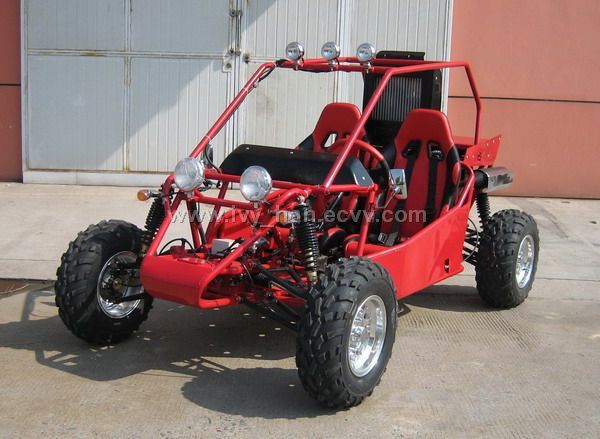

650cc Go-kart with EEC/EPA approved

MODEL: IWELL 650GK-1 (EEC/EPA APPROVED)
Overall Length 2880*1600*1480mm
Wheelbase 2050mm
Front Track 1220mm
RearTrack 1200mm
Ground Clearance 295mm
Type 2-Cylinder,4-Stroke,Liquid-cooled
Bore x Stroke 76mm?1mm
Displacement 644ml
Compression ratio 8.4:1
Carburetor BJH101E or CSH101E
Max Power 20.6kw/5300rpm
Maximum Torque 44/2700~3300Nm/r/min
Starting Electric
Ignition C.D.I
Lubrication Force & Splash
Transmission manual clutch, 4 shift with Reverse gear
Spark Plug F6T or F6TC
Plug gap 0.7?.1mm
Fuel type RQ93 (unleaded)
Lubricate oil SAE-15W/30
Turning radius 4000mm
Fuel tank 25L
Engine oil 2900ml
Coolant 4000ml
Starting <5s
Climbing 20?25?
Battery 12V36Ah
Head Light 12V 80W/Both
Fuse 35A
Max speed 50 miles/h
Front, Rear brake Hydraulic disc, right foot control
Front Suspension Independent Dual A-Arm
Rear Suspension Independent Dual A-Arm
Drive Train 2WD Shaft drive
Net Weight 460kg(1012lb)
Max load capacity 200kg(440lb)
Loading quantity 8units/1*20' or 24units/1*40HQ

Place of Origin:	Jiangsu Taixing in China
Model No:	IWELL650GK-1
Brand Name:	IWELL
