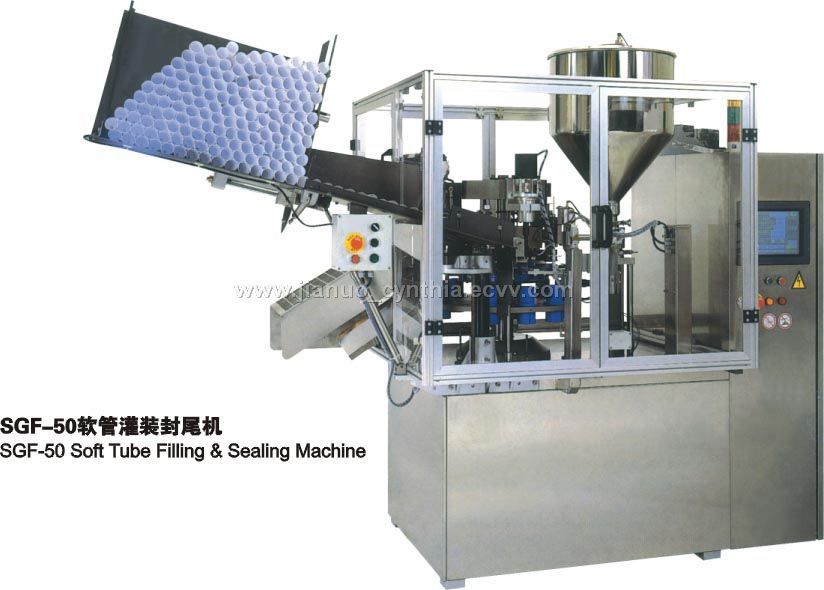

filling & sealing machine

The control parts of the machine are composed of intelligent man-computer interface, large touch screen display/operation control panel, including temperature setting, motor speed, filling speed, direct screen display and screen control.The components of the machine which touches the filling material are made of stainless steel SUS304 and SUS316L. Transparent cover, feeding hose, feeding device are also supplied with the machine. The machine is featured with safety switch, auto-stop, soft tube positioning, photoelectric sealing control etc. During the process, hose-feeding and setting, filling and sealing, ejecting are all auto matically controlled. Digital count device is installed at the low front part of the machine. During filling process the filling head is put inside the material pot to avoid air-entrance. For high viscosity filling material, blow-off device is installed to ensure a complete sealing. Many choices of sealing type are available to meet different need of clients.
Specification:
1. Voltage: AC220V/50HZ?0%
2. Power: main 3kw (electric heating )
3. Filling Capacity: 300-4200 tube/hour
4. Quantity Error: <2%
5. Compressed Air: pressure 0.6 Mpa/cm2
6. Dimension: 1650mm X 1200mm x 1200mm
7. Weight: 600kg

Place of Origin:	Jiangsu in China
Model No:	SGF-50
Brand Name:	WUXI JIANUO
Package:	wooden cases
