Pneumatic filling machine

Detailed Product Description

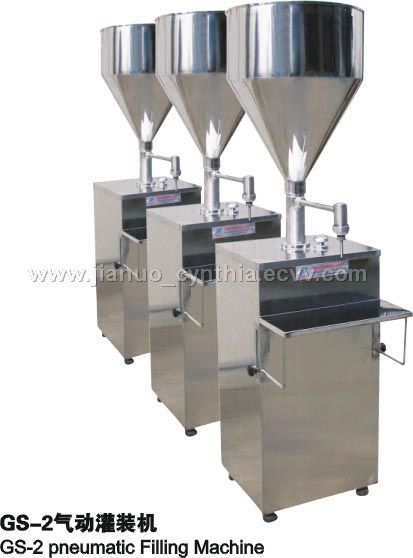

GS-1 Electric Filling Machine and GS-2 Pneumatic Filling Machine is suitable for the ration filling of the material is water , oil , cream , lotion form supplies. According to the filling requirement, the worktable is adjustable to go up and down.
The filling quantity is 5-1000ml and divide six series A,B,C,D,E,F。
Feeder way: plain gravity type/ automatism suck feed .
Work way:manual/ automatism
Control way: electromotion control
Specification:
1. Compressed Air: pressure 0.4-0.6Mpa 0.3m3/min
2. Filling Capacity: Type A: 5-15ML Type B: 10-75ML
Type C: 20-150ML Type D: 50-300ML Type E: 100-500ML Type F: 200-1000ML;
3. Mechanical Capacity: 10-40time/min
4. Quantity Error: <20%
5. Moveable Range of Filling Base: 100mm
6. Volume of Material Pot: 20L, 30L, 40L, 50L
7. Overall Diameter of Filling Container: Depending on material and filling quantity.
8. Dimension: 500mmX450mmX1500mm(electrical)
400mmX400mmX800mm(pneumatic)
9. Weight: 80KG
