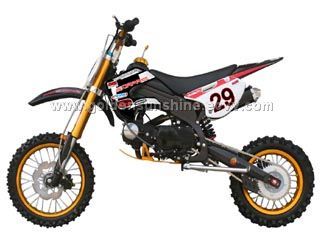

Dirt Bike (CB05)

* Packing:1pc/iron cage,with carton

1) Size of carton:154 x 43 x 71cm

2) N.W.:86.5kgs

3) G.W.:96kgs

4) 51pcs/1x20ft,111pcs/1x40ft,134pcs/1x40hq

* Engine:4-Stroke single cylinder air cooled

1) Bore & Stroke:54 ?54 mm

2) Start:Kick Start

3) Ignition:CDI

4) Carburetor:25mm Double float

5) Compression Ratio: 9.2 : 1

6) Transmission:Manual: 5-speed, International shift pattern

7) Clutch:Manual

8) Final Drive:Chain #420

9) Max Power:6.5kw / 8500 r / Min

10) Frame & Swing Arm:Steel

11) Front shock:Inverted hydraulic Adjustable shock

12) Rear shock:Adjustable Air /Oil shock Absorber

13) Brakes:Front & Rear Hydraulic Disk

14) Alloy parts:Front shock, fuel tank cap, triple tree, gear lever , muffler

15) Seat Height: 75cm

16) Wheel base:1250mm

17) Ground Clearance:320mm

18) Front & Rear wheel:Front: 2.5-14? Rear: 3.00-12"

19) Engine and Rear Sprocket:16/43 (#420)

20) Length / Width / Height:1700?00?80 mm
