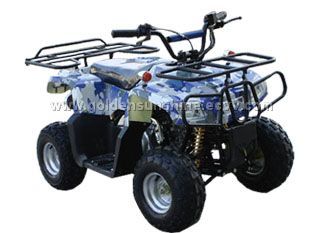

ATV (AT03)

Detailed Product Description

Model:AT03

Packing:1 pc / iron cage, with carton

Size of carton:116 x 74 x 66 cm

N.W.: 70 KGS

G.W.: 77 KGS

42 pcs / 1 x 20 ft, 90 pcs / 1 x 40 ft, 120 pcs / 1 x 40 HQ

1) Engine type: 50cc,70cc,90cc,single cylinder, 4-stroke, air-cooled

2) Starting system: electric

3) Maximum power: 2.3 kw / 7,000 rpm

4) Maximum speed: 40 km/h

5) Ground clearance: 80 mm

6) Transmission system: chain

7) Braking method: rear disc

8) Climbing ability: 17^o

9) Tire size: front 145 / 70-6, rear 145 / 70-6

10) Cylinder bore stroke: 39.0 x 41.4 mm

11) Displacement: 49 ml

12) Seat height: 560 mm

13) Cylinder: single cylinder

14) Max. loading: 75 kg

15) Fuel: 93# mix of gasoline and oil

16) Rider capacity: 1

17) Methods of lubrication: oil mist

18) Wheel base: 750 mm

19) Product dimensions: 1,230 x 710 x 830 mm

20) Weight: 42 kg
