Packing:1pc/iron cage,with carton
Size of carton:138x82x85cm
N.W.:132KGS G.W.:145KGS 30pcs/1x20ft,66pcs/1x40HQ

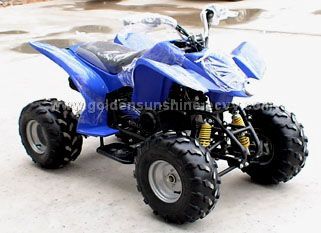

1)Size of engine: 150cc GY6 4 stroke/single cylinder/air cooled
2)Transmission system: chain drive
3)Bore x stroke (mm): 46.3 x 57.8
4)Compression Ratio: 9.2:1
5)Maximum Power (kw/r/min): 5.25/7500
6)Maximum Torque (N.m./rpm): 6.5/5750
7)Starter System: Electric Starter
8)Lubrication: Auto
9) Transmission: 4 speed, semi automatic
10)Overall dimensions (LxWxH): 1610 x 900 x 1030mm
11)Wheelbase: 900mm
12) Rim type: spoke / alloy
13)Min. Turning Radius (mm): 2000
14)Ground Clearance (mm): 100
15)Rider Capacity: 1 Person
16)Net Weight (kg): 150
17)Brake: front drum, rear disc
18) Tyre size: front - 19?-8; rear - 18?.5-8
19)Ignition Type: C.D.I.
20)Fuel Tank Capacity: 7.8L
21)Engine Oil Capacity: 0.9L
22)Gear Oil Capacity: 0.12L
23)Suspension: front - independent; rear - monoshock swing arm
24)Load Capacity: 100kg
25)Max. Speed: 60KM/H 26)Battery: 12V-9Ah
| Place of Origin: | China| |
| Model No: | AT11 |
| Delivery Time: | 15-18 |
