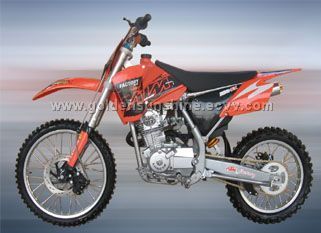

250cc KTM Copy (CB09A)

Drive system: chain

Engine type: 250cc,single-cylinder, four-stroke and air-cooled

Starting mode: electric start+kick start

Bore x stroke: 63.5 x 62.2mm

Displacement: 196.98mL

Maximum speed: 80kph

Maximum power output: 11.5kW/6,500rpm

Maximum torque and rotating speed: 13.5Nm/6,500rpm

Wheelbase: 1,330mm

Minimum ground clearance: 320mm

Seat height: 900mm

Front/rear brake system: disc for front and disc for rear

Front/rear tyre size:

Front: 70/100-19 inches

Rear: 90/100-16 inches

Maximum user weight: 100kg

Gross weight: 124kg

Net weight: 105kg

Carton dimensions: 1,655 x 440 x 840mm

Assembled dimensions (L x W x H): 1,920 x 820 x 1,140mm

Conveyance: 32 pieces/20-foot

FCL container and 105 pieces/40-foot HQ container

Colors: red, yellow, blue, green and black
