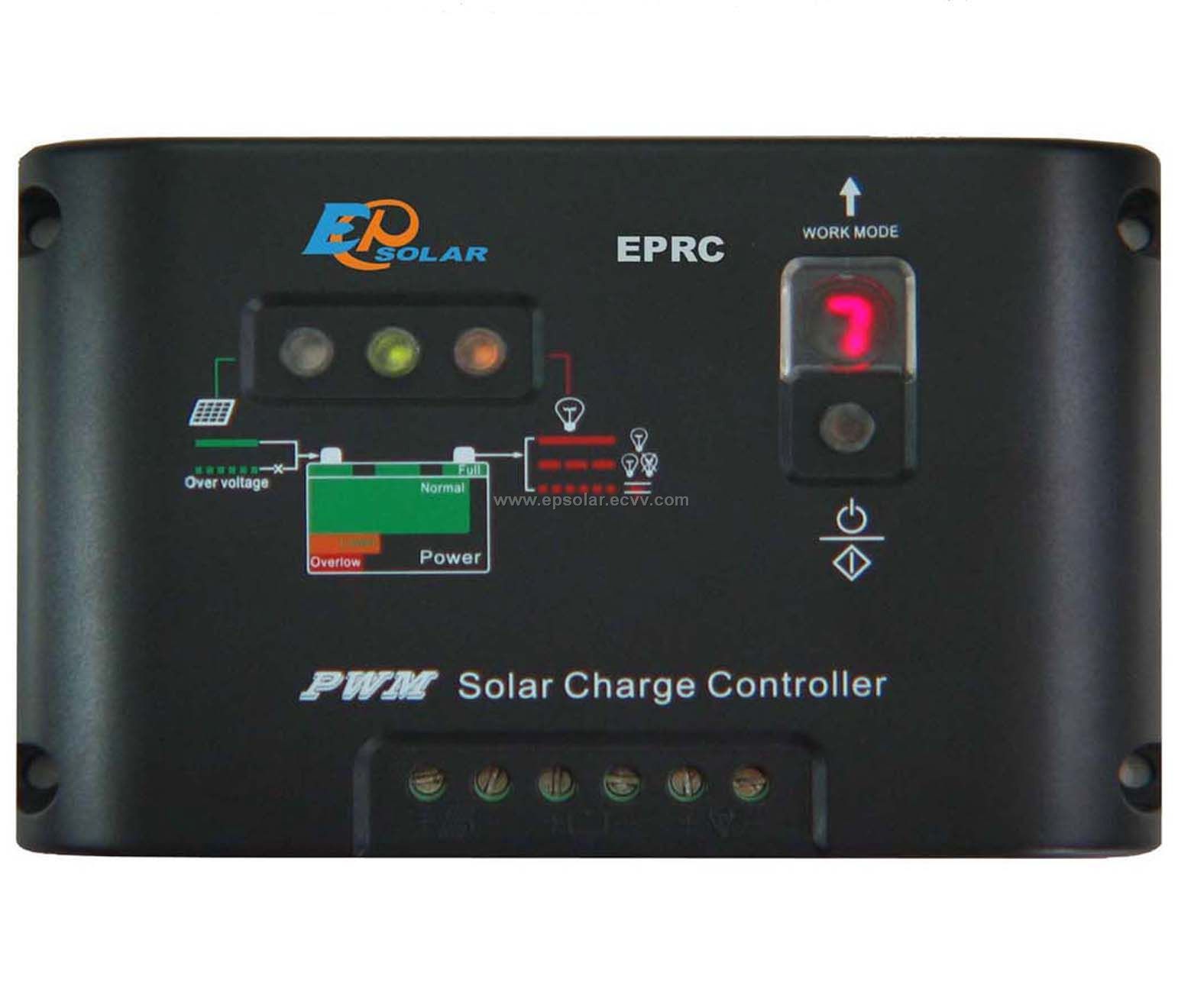

EPRC-5/10
SOLAR CONTROLLER
FOR SOLAR SYSTEM WITH AUTOMATIC LIGHTING CONTROL AND TIMER FUNCTIONS
EPSOLAR is high quality and reliability is now available in a low cost solar controller. The EPRC Controller is designed with a microcontroller for automatic lighting control functions.
THIS TECHNOLOGY PROVIDES:
Proven reliability
Precise lighting control
PWM battery charging
FOUR VERSIONS AVAILABLE:
12 Volt: 5 and 10 amp ratings
24 Volt: 5 and 10 amp ratings
OPERATION:
Digital LED display shows the 16 lighting options(by switch with 5 seconds )
Number display, 0 to 7, DC output.
Number display, 0. to 7. 1Hz output.
Digital LED stop flash to confirm correct switch ion.
10 minutes delay to make sure its real dark.
12Volt 24Volt
Rated solar input 5/10A 5/10A
Rated load 5/10A 5/10A
25% Current overload 1 min. 5 min.
Regulation voltage 14.4 V 28.8 V
Load disconnect 11.08V 22.15 V
Load reconnect 12.58V 25.10 V
Temp Comp.(mV/) -30 -60
Type of Charging: series PWM , state of charge(SOC) Self-consumption: 6mA maximum
4 stages Bulk,PWM,Boost and Float Dimension: 140x90.5mm
Electronic protections: short circuit and over current Terminals: for wire sizes to 2.5mm2
-solar and load Weight: 250g
Reverse polarity-solar,load & battery Temperature: -35 to +55
Reverse current at night Humidity: 100% non-condensing
High voltage-load Enclosure: IP22
Lightning-solar, load, battery Case: ABS
Tropicalization: circuit board-conformal coated Compliance: CE world Bank
Terminals-corrosion protected
LED indications: Green charging
Green-Yellow-Red battery levels
Red low voltage warning and disconnect
Green-Yellow-Red battery levels
All 3 LEDs blink-to show mistakes
| Place of Origin: | Beijing in China |
| Model No: | EPRC-10, 12/24V, 10A,5A |
| Brand Name: | EPHC |
| Delivery Time: | 7 days |
