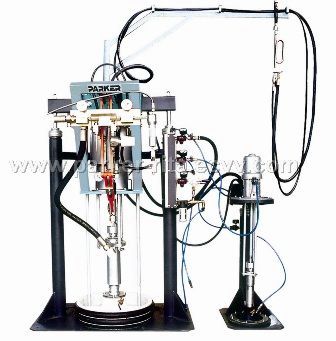

Two-Component Coating Machine

Detailed Product Description

Main feature: This is a special purpose and machine spreading two-part polg sulfide sealant when making aluminum groove type insulating glass and curtain wall glass. The main and auxiliary pumps activated by hydraulic lubrication oil and compressed air, controlled by no-touch-point electric control system, is smooth to run, flexible and reliable to change direction, continuous and stable to produce sealant, high in efficiency and convenient to use and maintain, so it is one of the most important equipment to make aluminum groove type insulating glass and curtain glass. Most of the parts on the machines are imported.

Main technique parameters:

Hydraulic station electrical machinery power: N=1.5KW

Mixed rate: 100:6.5-100:14.5

Rated pressure admission: 0.5Mpa

Sealant volume: 20-35Kg/h

Air Consumption: 0.6m3/min

Place of Origin:	Shandong in China
Model No:	TCC300A
Brand Name:	PARKER
FOB Price:	00-000 USD 000
Other Price Terms:	1. T/T T/T30% deposit shall be paid primarily, and the rest amount should be paid prior to the ship
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Package:	No-painted natural parts will be covered with grease for anti-oxidation and protection purpose. Each
Delivery Time:	As soon as we receive your advanced payment
