wire rope
Detailed Product Description
Wire Rope According to EN 12385

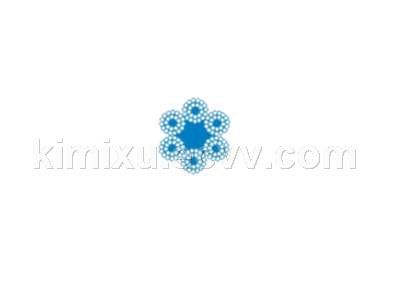

6x24 + FC
Nominal Approx. Nominal Tensile Strength
1570N/m㎡ 1770N/m㎡
Diameter Weight Minimum Breaking Strength
mm kg/m KN KN
6 0.115 15.89 17.9
7 0.156 21.58 24.3
8 0.204 28.2 31.7
9 0.258 35.6 40.1
10 0.318 44.0 49.6
11 0.385 53.2 60.0
12 0.458 63.3 71.4
13 0.538 74.3 83.8
14 0.624 86.2 97.1
16 0.815 113 127
18 1.03 143 161
20 1.27 176 198
22 1.54 213 240
24 1.83 253 285
26 2.15 297 335
|
