Parts(XY-EW3000A)

Place of Origin: Zhejiang Yongkang in China
Model No: XY-EW3000A
Brand Name: Xingyu

Parts(XY-EW3000A)

Detailed Product Description

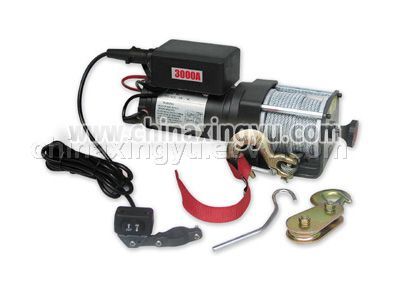

XY-EW3000A
Features:
1)Free spooling clutch.
2)Automatic braking action.
3)Full steel reduer gear
4)DC 12V or DC 24V power drive.
5)A snatch block supplied as a standard accessory.
6)High current switch control directly.
7)ATV Handlebar switch control.
8)Control box detchable fixing
9)Remote control with control box and switch
10)Wireless remote control

Specification
Rated line pull : 3000lbs (1361 kgf)
Motor: Permanent magnet,1.8kW/2.5hp(12v);2.4kW/3.2hp(24v)
Gear reduction ratio : 153:1
Cable(Dia * L): Φ3/16"*45.9'(Φ4.8mm*14m)
Drum size(Dia * L): Φ1.24*2.88"(Φ31.5mm*73mm)
Mounting bolt pattern: 3.13"(79.5mm)
Overall dimensions(L*W*H) : 12.6"*4.6"*5.9"(320mm*116mm*150mm)
Weight: 20.3 Lbs(9.19kgs)
