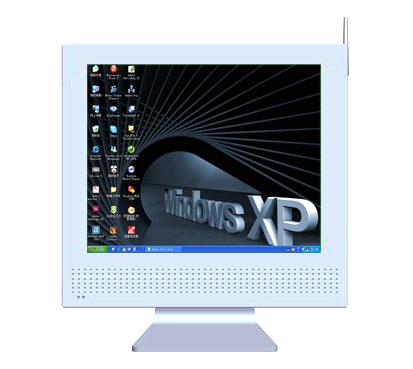

17 Inch All in one computer

Place of Origin: Guangdong in China
Model No: PPC-17
Brand Name: Annso

Minimum Order: Piece/Pieces 20

Detailed Product Description

all in one computer,17 inch desktop all in one computer PPC-17,this all in one computer with 17 inches LCD screen

All-in-one 17" LCD Panel PC, Intel /AMD/ VIA CPU Compatible

Introduction

The display is the All in one computer .The entire computer, support MINI-ITX form factor main board, s lim type optical drive, hard disk, card reader, speakers integrates inside a dazzling display. It combines all your life, music, photos, movies, email.... within a monitor-based space. You may enjoy the space you saved, the enchanting screen you earned and the comfortable user interface you are familiar to.

Specifications

Mainboard	Standard MINI-ITX main board
Processors	Intel / AMD / VIA
Memory	Upgradable standard SDRAM / DDR /DDR2 memory
HDD	*3.5" x1 and 2.5" x 1
Optical Device	*Slim CDROM/DVDROM/Combo(DVD+CDRW)DVD ± RW
Display	Display Type : 17" SXGA TFT LCD Resolution : 1280 × 1024 Max.color : 16.7M Luminance : 300 cd/m2 View Angel : 178°(H) , 178°(V) Pixel Pitch : 0.264 x 0.264 mm Contrast Ratio : 1000 : 1 Response Time : 5 ms Power Consumption : 21.9 W LCD MTBF : 50,000hrs
Expansion Slots	*1 x PCI slot or 1x PCI-E
Speaker	*Built-in 2x stereo speakers(2w)
Multi-Media Card Reader	*CF/Micro Drive/MS Pro(Due)/SM/SD/(RS)MMC/XD(Optional)
Wireless LAN	32bit PCI card Interface. (Optional),Support 64 and 128 bit WEP Encryption 802.11b:11Mbps Up to 180m(Outdoor), 35- 60 m(Indoor)/ 802.11g:54Mbps up to 50m(Outdoor),20m(Indoor)
Touch Screen	Internal USB or RS-232 interface controller (optional) Type: Analog resistive type : 25VDC ≥ 20MΩ Resolution: continuous Light transmission: 80% or more Power consumption:<5V @1mA Surface hardness : 3H Operating force : ≤100g Life expectancy : 35 Million
Power Adapter	internal 120W power board External AC adapter ,Input: AC/100-240V(50/60Hz)2.5A ,Outpu t : DC/19V.7.5A 140W
Safety	CE/FCC
Measurements	Length: 40.00 cm; Wide: 35.68 cm;Thick: 8.68 cm (Without the stand)
Weight

Support

Support MINI-ITX form factor main board
Space for SATA 3.5"HDD x1 and 2.5" HDDx1
Slim optical driver
120W Internal ATX power board + external ac adapter

Optional

Wireless LAN
Touch Screen
Card Reader

Ordering Information

PPC-17	17" all in one Computer Platform
PPC-17T	17" all in one Computer Platform with touch screen
PCI-E Kits	PCI-E riser card + fixed bracket kits
