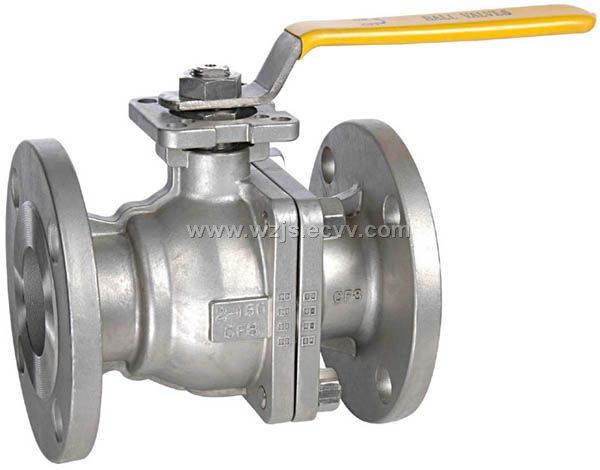

2-pc Flanged/Butt-weld Ball Valve
Size:1/2?8?
Pressure: Class150LB-1500LB
Material:WCB,LCB,CF8,CF8M,CF3,CF3M, A105,LF2,F304,F316,F304L,F316L
Design & Manufacture Std.: ASME B16.34,API608,API6D
Fire Safe Std: API607,BS6755
Face to Face Std.:ASME B16.10
End Connection Std.:ASME B16.5, JISB2212/JISB2214,DIN2543/DIN2544
Mounting pad:ISO5211
Test Standard: API598, API 6D,JISB2003, DIN3230
Structure Type: Two-piece Floating type, Full bore
Operated way: Lever，Pneumatic, Electric
|
