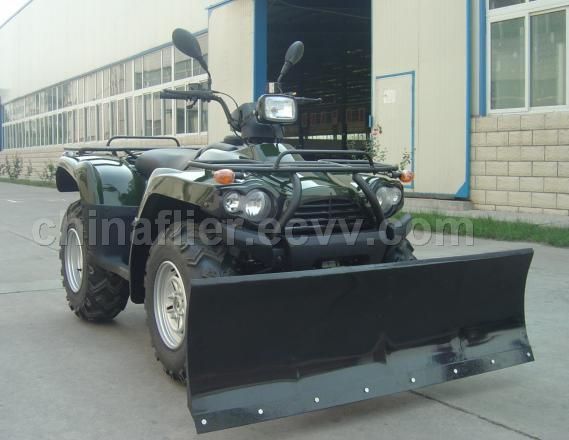

EEC ATV400 4*4

Place of Origin: Zhejiang Jinhua in China
Model No: ATV400 4WD
Brand Name: FLIER

EEC ATV400 4*4

Supply Ability: 100,000 pcs/year
Package: Carton outside, hob inners
Delivery Time: 10

Detailed Product Description

1. CVT, water cooled engine
2. One-touch easy shift between 2WD and 4WD
3. High-Low-Neutral-Reverse speed
Ground clearance:200mm
Max Speed :≥80km/h
Climbing Ability:≥30
Specification of Front wheel :25*8-12(38F)
Specification of Rear wheel :25*10-12(45F)
Distance between front wheel :860mm
Distance between rear wheel :860mm
Distance between front and rear whee: 600mm
Seat high:900mm
Distance between front axle and rear axle:1235mm
Gross weight:350kg
Dry weight :300kg
system front/rear Brake:Disk/Disk
Engine:One Cylinder/Four Stroke
Cylinder dia..*Working stroke:78mm*78mm
Efficient Capacity:372 ml
Rated Power and Rotate Speed :18KW/7800r/min
Max Torque and Rotate Speed:28N.m/5000r/min
Shift Ratio :2.444-0.829
Gearshift Mode:4 WD/Shaft drive /manual front drive/ auto-matic clutch
Compression ration:10:1
Starting System:Electric
Cooling System:Water- Cooling
Fuel tank:13
Loading :12/20 36/40H
Packing measure:1950*1150*860
