Glass Bulb 5mm ,3mm ,
Color ranged : orange 57oC,Red 68 oC,Yellow79 oC, Green 93 oC, Blue 141 oC, Purple 182 oC
Model : Diameter 15mm

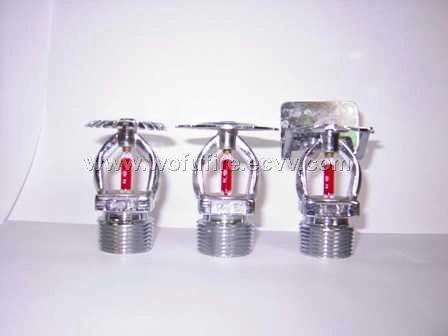

ZSTZ 15(upright,pendent,Conventional,sidewall )Specifications:
Airproof test pressure : 3Mpa,
Rated working pressure :1.2Mpa ,
Thread : R1/2
K coefficient: 80
Flowing caculation: Q=K√10P ( P=working pressure)
|
