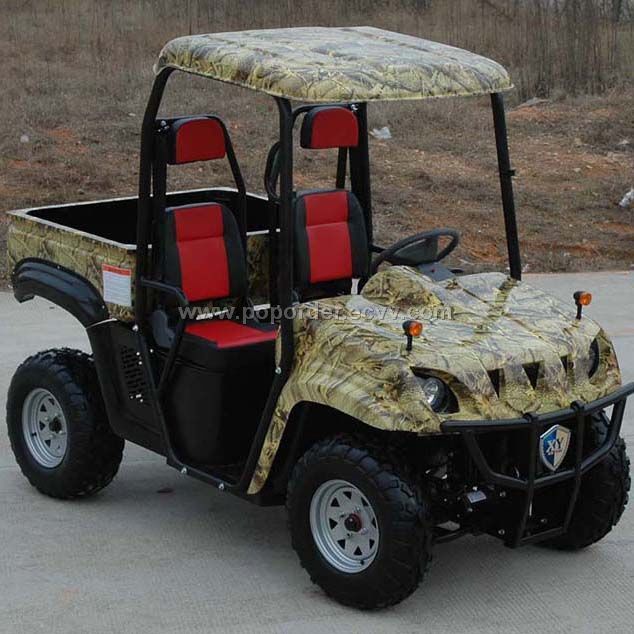

Utility Vehicle with EEC(300cc)
Detailed Product Description
1) Product dimensions (mm): 2,650 x 1,270 x 1,890
2) Wheelbase (mm): 1,960
3) Wheel span (mm):
a) Front: 1,100
b) Rear: 1,200
4) Ground clearance (mm): 240
Engine:
1) Type: single cylinder, 4-stroke, liquid-cooled
2) Bore x stroke (mm): 76 x 60
3) Displacement: 300ml/22HP
4) Compression ratio: 10:1
5) Starting: C.D.I
6) Transmission: gear transmission automatic clutch (with forward neutral
reverse)
7) Shaft drive
Capacities:
1) Turning radius (mm): 3,500
2) Fuel tank: 20.0L
3) Battery: 12V
4) Max. speed: 80km/h
Weight:
1) Max. load capacity: 600kg
2) Net weight: 540kg
Conveyance:
Qty/20' FCL: 8pcs
Qty/40' HQ: 18pcs
|
