wall hung boilers accessories,Hydraulic circuits for boiler,hydraulic valve sets,hydraulic blocks
Detailed Product Description

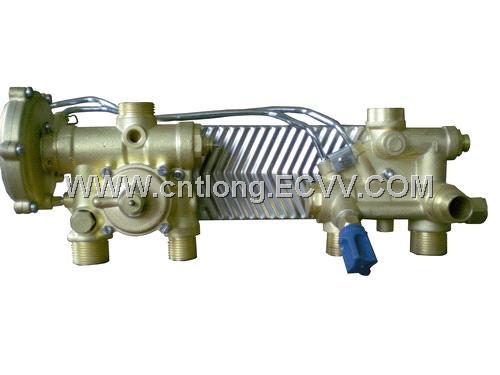

The hydraulic sets include hydraulic valve, heat exchange, temperature sensor, etc. It is used for wall hung boiler (combination gas boiler) system to reverse, inspect and control the flow of heating water and bathing water.
TL20-A series
Motor voltage: AC220V,50Hz
Reversing: motor driving
Valve diameter: 20mm
Sensor voltage: DC5V
Heating water pressure: 0.5-3.0kgf/cm2
Max bathing water pressure: 7.0kgf/cm2
Min bathing water pressure: 0.3kgf/cm2
Min bathing water flow: 2.5l/min
Max bathing water flow: 7.3-10l/min
TL20-B series
Reversing: diaphragm driving
Valve diameter: 20mm
Heating water pressure: 0.5-3.0kgf/cm2
Max bathing water pressure: 7.0kgf/cm2
Min bathing water pressure: 0.3kgf/cm2
Min bathing water flow: 2.5l/min
Max bathing water flow: 7.3-10l/min
|
-
