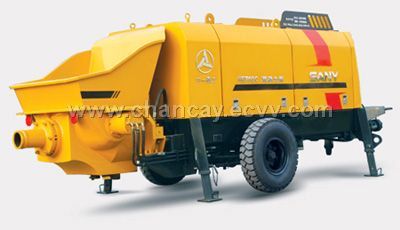

Concrete Pump HBT40C --1410D Ⅲ
Detailed Product Description
*Theoretic discharge capacity of concrete delivery (m3/h)
Large delivery volume under low pressure :50
Small delivery volume under high pressure :33
*Theoretic pressure of concrete delivery (Mpa)
Large delivery volume under low pressure :9.9
Small delivery volume under high pressure :6.3
Diameter of delivery cylinder čľaximum stroke (mm) : Φ 180*1400
Discharge capacity of main oil pump cm3 : 95
Rated power of diesel engine kW : 47.5
Hopper volume m3 : 0.6
Material feeding height mm : 1320
*Theoretic maximum delivery distance (m) ( f 125mm )
Horizontal :600
Vertical: 150
Overall dimension length*width*height (mm) : 5262*804*155
Total weight (Kg) : 4000
|
