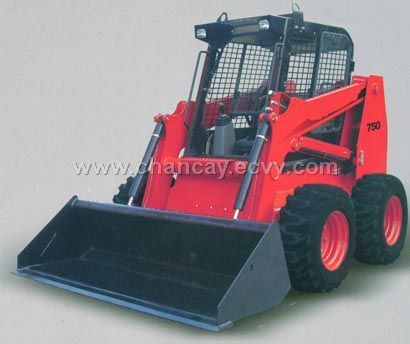

Skid Steer Loader GM750(Japan Engine)
Detailed Product Description
engine
Type: Japan engine
rated power(kw): 44
Speed(rpm): 2500
noise
in cab (dB): ≤92
Out of cab (dB): ≤106
HydrauliC system
max preeure(Mpa): 14.2
cycle time(s):
Raise: 3.5-4.5
Dump:2-2.5
Lower:3-3.5
operating load(kg): 750
capacity (m3): 0.55
tipping load (kg): 1900
braek-outforce(kg): 1700
force (kg): 1500
speed (km/h): 0-11.2
with standard bucket(kg): 3600
Tyre: 12-16.5
max.height (mm): 3900
high to bucket hinge pin (mm): 2970
dump height (mm): 2200
height to top of cab (mm): 2260
overall length with bucket (mm): 3500
dump distance (mm): 640
overal length with bucket (mm): 2600
wheel base (mm): 1050
rear axle centerline to back bumper(mm): 1050
Bucket width (mm): 2020
Tread(mm): 1660
outside of tyre (mm): 1980
Ground clearance: 210
Clearance circuit front(mm): 2050
Dump angle at max height: 37
Max attachmenr rallback when bucket on ground: 31
Angle of departure: 20
|
