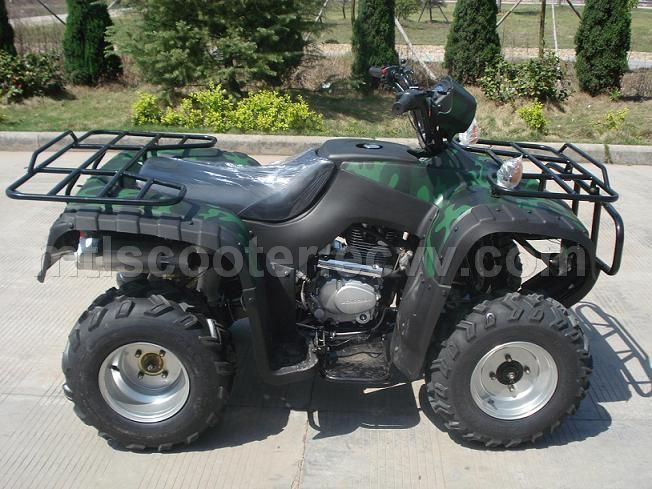

EEC-ATV-250cc, MANUAL CLUTCH
- Minimum Order: 20'container
- Delivery Time: 20
Detailed Product Description
Features:
1) Engine type: double-cylinder, 4-stroke, air-cooled
2) Engine displacement: 249.2ml
3) Bore x stroke: 53 x 53mm
4) Max. power: 13km/8,500rpm
5) Max. torque: 16.5N.m/6,500rpm
6) Min. fuel consumption: 400g/kWh
7) Transmission: shaft
8) Start mode: electric
9) Transmission mode: shaft
10) Brake mode: front/rear disc
11) Brake distance: 7m/30km
12) Shift speed type: four, with reverse gear
13) Clutch mode: auto clutch
14) Length x width x height: 1,860 x 1,050 x 1,060mm
15) Min. turning radius: 3,500mm
16) Climbing degree: 35?
17) Lamp: double head lamp
18) Seat height: 750mm
19) Min. ground clearance: 160mm
20) Top speed: 70km/h
21) Tire dimensions (front / rear): at 23 x 7-10 / at 22 x 10-10
22) Cover material: PP
23) Color: black / blue / red / green / yellow
Packing:
Carton dimensions: 1,980 x 1,080 x 890mm
N.W.: 220kg
G.W.: 260kg
Conveyance:
Qty/20' GP: 12pcs
Qty/40' GP: 24pcs
Qty/40' HQ: 36pcs
|
