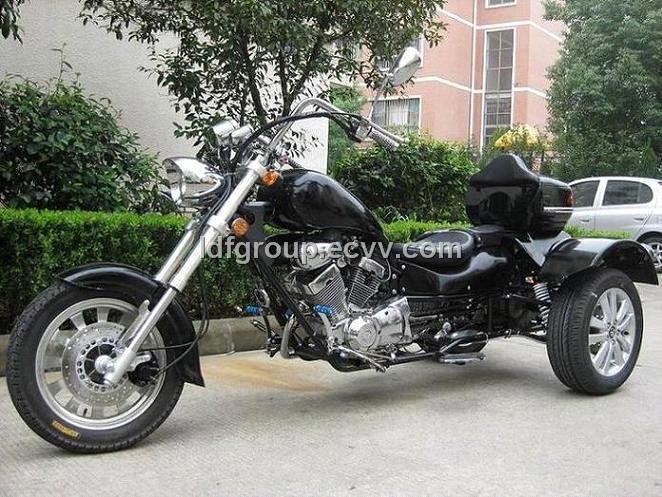

Trike Motor (LDF-TC001)

Specification of motor trike LDF-TC001:

Engine Type: V-Twin cylinder,250cc
Transmission System: Chain driving
Bore x Stroke (mm): 49*66
Piston Displacement (cc): 248.9
Compression Ratio: 10: 01
Maximum Power (kw/r/min): 12kw/8400r/min
Maximum Torque (N. M. /rpm): 17.5N. M/6000r
Starter System: Electric start
Lubrication SAE 15W / 40-SF
Overall Length (mm): 2860
Overall Width (mm): 1220
Overall Hight (mm): 1280
Wheel Base (mm): 2200
Min. Turning Radius (m): =<3.5
Ground Clearance (mm): 175
Rider Capacity: 2
Brake (Front/Rear): Disc brake
Tyre, Front: 110/90-16
Tyre, Rear: 195/155 R15
Ignition Type: CDI
Engine Oil Capacity (L): 17
Climb Capacity(0c ): 45
Front Suspension: Reverse suspension
Rear Suspension: Spring
Max. Speed (km/h): 110
Battery: 12V/14A
Cooling system: Air cooling
Carburetor mikuni/BDS26
Clutch:Wet Multi-plate
Low gear ratio: 0.821
Hight gear ratio: 2.642
Packing size: 2255*1255*785
G.W.:296kgs
N.W.:246kgs
loading quantity:
20"ft: 8pcs
40"ft: 18pcs
40"HQ: 27pcs.
