Automatic sand blasting machines are specially designed for processing glass sheet rang from 400mm -2500 wide, 5-20mm thick. It consists of blasting cabinet, dust collector, conveyors, PLC control system, three automatic blasting guns for automatic operation and one manual blasting gun for manual blasting.

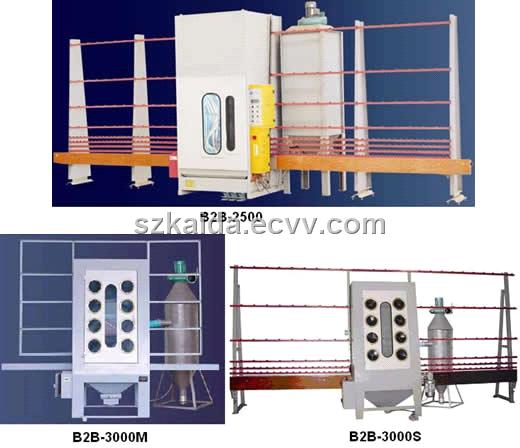

Model:B2B-2500
Capacity:12-15 m2/h
Glass sheet, max :2500mm (H) x 3000mm
Glass sheet, min :400mm x 400mm
Glass sheet thickness :5-20mm
Automatic blast gun:3 pcs
Manual blast gun:1 pc
Dust collector power :2.5Kw
Total power:3.5Kw.
Air source:pressure: 0.6~0.8MPa
flow: 5 m3 /min
Filter bga :16pcs
Overviwe dimension:7400mm x 1500mm x 3300mm
Main cabinet:3000mm x 1200mm x 900mm.
Dust colletor:2000mm x 800mm x 800mm.
Weight:1100kg
Model:B2B-2000
Capacity:10-15 m2/h
Glass sheet, max :2000mm (H) x 3000mm
Glass sheet, min :400mm x 400mm
Glass sheet thickness :5-20mm
Automatic blast gun:3 pcs
Manual blast gun:1 pc
Dust collector power :2.5Kw
Total power:3.5Kw.
Air source: pressure: 0.6~0.8MPa
flow: 5 m3 /min
Filter bag :16pcs
Overviwe dimension:7400mm x 1500mm x 2780mm
Main cabinet:2500mm x 1200mm x 900mm
Dust colletor:2000mm x 800mm x 800mm.
Weight:1000kg
Model:B2B-1500
Capacity:10-15 m2/h
Glass sheet, max :1500mm (H) x 3000mm
Glass sheet, min :400mm x 400mm
Glass sheet thickness :5-20mm
Automatic blast gun:3 pcs
Manual blast gun:1 pc
Dust collector power :2.5Kw
Total power:3.5Kw.
Air source:pressure: 0.6~0.8MPa
flow: 5 m3 /min
Filter bag:16pcs
Overviwe dimension:4800mm x 1500mm x 2780mm
Main cabinet:2000mm x 1200mm x 900mm
Dust colletor:2000mm x 800mm x 800mm.
Weight:950kg
Manaul Sand blasting machines B2B-3000M and B2B-3000S are specailly designed for maunally processing glass sheet rang from 400mm -1250 wide, 5-20mm thick. It consists of blasting cabinet,
dust collector, conveyors, and one manual blasting gun.
B2B-3000S has powered conveyor for easy move glass sheet passing through blasting area.
B2B-3000M and B2B3000S can be also used for processing porcelain tile, stone slab, plastic sheet for surface engraving.
Model B2B-3000M
Overviwe dimension 3200 x 1000 x 2600mm
Glass sheet 1250mm(H) x 3000mm max Glass sheet thickness 5-20mm 5-20mm
Manual blasting gun 1pc
Bag Filter 8pcs
Dust collector power 1.0kw
Total power consumption 1.3
Weight 500kg
Air source Air pressure: 0.6~0.8MPa, Air flow: 5 m3 /min
Model B2B-3000S
Overviwe dimension 5500 x 1000 x 2600mm
Glass sheet 1250mm(H) x 3000mm max
Glass sheet thickness 5-20mm
Manual blasting gun 1pc
Bag Filter 8pcs
Dust collector power 1.0kw
Total power consumption 2.0kw
Weight 600kg
Air source Air pressure: 0.6~0.8MPa,Air flow: 5 m3 /min
