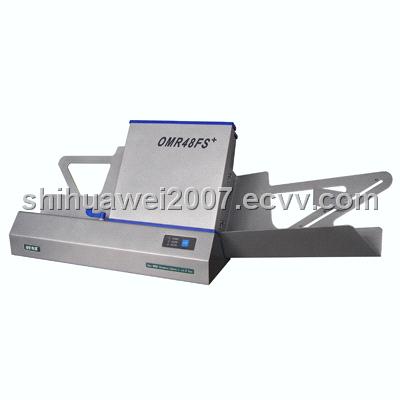

Look for the Optical Mark Reader Agent ----OMR48FS+

Detailed Product Description

OMR48FS+

Principal characteristics:
1. Adopt the latest DSP technique.
2. Can read forms with track distance of 1/6".
3. Can read bar code.
4. The photoelectric sensor doesn't need to be adjusted.
5. Can read forms with 50 routes at most.

Specifications:

Reading mode:	single-face and read one time
Feeding mode:	automatic
Speed:	1-3pcs/sec (based on A4)
Form size:	130mm50mm-300mm210mm
Form thickness:	70-150g/m²
Track distance:	4.23mm
Tolerance:	cutting±0.2mm
Marking tools:	pencil read head: pencils and carbon pen pen read head: pencils, pens, ball-point; pens (non-red, non-white)
Size of mark:	≥ 2mm*1mm
Error rate:	≤ 1*10^-7
Double-sheet rate:	≤ 1*10^-4
Check rate:	≤ 1*10^-4
Mark choice:	single choice, multiple choice and BCD code
Format:	26 kinds, each has 256 commands at most
Bar code:	128 code, 39 code and 25 code
Communicate interface:	RS232 serial and USB interface
Host:	PC 586 or faster, notebook PC
Weight:	8kg
Operating system:	Win2000 or Win XP
Power supply:	AC100-240V, 50-60Hz
Packing size:	560mm170mm400mm
Environment:	temperature 0-40°C, humidity ≤ 90%, no erosive gas
