Detailed Product Description

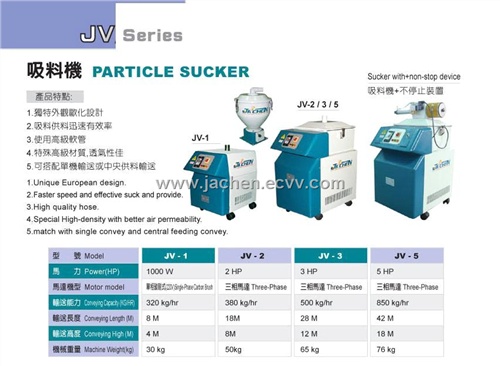

Auto Loader Machines- Vacuum Loading Machines
JV series Auto Loader Machines is used for loading plastic resin to hopper dryer or IMM automatically based on principle of vacuum. Autoloader Machine- Vacuum Loading Machine has many excellences and it comprises low noise, air pollution, residual, durable in high temperature, over a long period of time steady supply material, and etc.

Features:

The design has contained vision aesthetic appearance to improve the machine valuable and practicability.
Faster speed and effective suck and provide.
JV series use high quality hose.
Polish material hopper.
Sensitivity sensors and well-closed flap valve.
JV series has alarm for material shortage.
High density of filter and low air-block make a long period of time steady supply material.
Match with single convey and central feeding convey.
Special designs made to order for meeting clients need.

Model JV-1 JV-2 JV-3 JV-5

Power (HP) 1,000 W 2.5HP 3.5HP 5HP

Motor Model (200V) Single-Phase Carbon Brush Three-Phase Three-Phase Three-Phase

Conveying Capacity 320 kg/hr 380 kg/hr 500 kg/hr 850 kg/hr

Conveying Length 8M 18M 28M 42M

Conveying High 4M 8M 12M 18M

Machine Weight 30 kg 50 kg 65 kg 76 kg
