Push Button Switch(XB2-E)

Product Name:

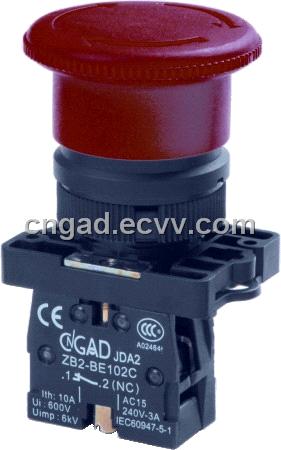

         Emergency Push Button Switch
         Push-pull mushroom push button switch
Type: GB2-ET42
Description: push-pull, red, 1nc
Application and main technical parameters
1) Mounting size: 22mm
2) Operational Voltage: ≤380AC or ≤220DC
3) Operational temperation: -5 to +40
4) Operational humidity: 45% to 90%
5) Power-frequency withstand voltage: 2500V AC, 1min
6) Contact resistance: ≤50mΩ
7) Mechanical durability: Monentary 1000, 000, maintained 250, 000
8) Electrical durability: 500, 000
9) Protection grade: IP40
