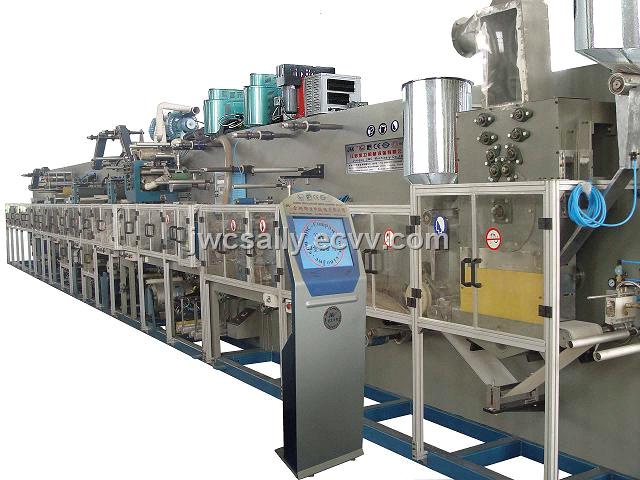

Production Line For Baby Diaper JWC-NK200

Name
Production Line For Baby Diaper

Model No.
JWC-NK200

Brand Name
JWC-NK200

Country of Origin
China

Product Description
Main functions and features:
1.The motors can convert frequency automatically. Driving system consists of synchronous belt (Opti belt, made in Germany) and round arc gear combined with gear case; The key parts adopt NSK,BEM bearings (made in Japan and Germany) for smooth transmission, Japanese Mitsubishi and German Siemens electronics make the machine more stable, prolonging the life expectancy. The functions are complete. It can produce diapers of economic type and high-grade type. It can produce four types of products(XL,L,M,S)with a few parts being easily changed.
2.SAP may be supplied at a fixed amount in designed locations or in a mixed way.
3.The machine has elastic waist, frontal waist tape and side waist tape devices.
4.The machine has leg cuff and leak proof devices.
5..Urgent Stop Unit.
6.Main raw materials are used with unwound tension control system and thermal pressure system adopts pneumatic unit and automatic raw material feeding is optional.
7 . The products can be output double-folded or tri-folded after pressure.
8.The machine also can produce 3 sizes of diaper pads.


Specifications
1. Type: JWC-NK200
2.Design output:(160-200) pieces/min
3.Installation capacity: 87.5KW(380V 50Hz)
4.Overall dimension:(19*2.5*30m(L*W*H)
5.Total weight: 22T
6.Equipment specification:(L*W)
(it can as your order)
S:(380*270) mm M:(450*310) mm
L:(520*330) mm XL:(540*340) mm


Payment Details
T/T L/C

Min Order
1 SET

Ship Date
75 DAYS

Standard Met
ISO9001/CE
