Detailed Product Description

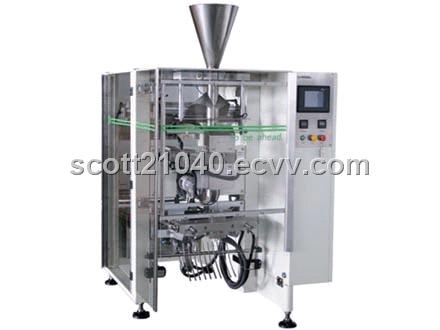

MODEL: ZL220
FINISHED BAG SIZE: L/80-300MM W/80-200MM
PACKING SPEED: AROUND 65BAGS/MIN
GENERAL POWER: 3 KW
TOAL WEIGHT: 500KGS
DIMENSIONS FOR MACHINE(L*W*H): 1440*975*1720MM
POWER SYPPLY TYPE: 220V50HZ
MAX PACKAGING FILM WIDTH: 420MM
Main Proformance & Structure Characteristics:
In accordance with the enterprise safety management requirements,It's equipped with automatic safety protection system. The seal part looks flat and beautiful by adopting the intellectual Temperature control system. It can finish the process of bag preparing, feeding, counting, pringting Of batch date, valid date gas charge, sealing cut and shaping conveying. The touch screen could set and change the parameters of the packing, It could store ten different packing parameters in the touch screen. There is also the trouble display system for the troubleshooting. It adopts the Japanese Mitsubishi servo motor paper pulling system, In the sealing cut position, it adopts the automatic lining device. The driving center of the machine is consists of PLC, servo motor System, air control system and human-machine interface touch screen.
Forming the pillow-type bag and hanging hole-bag if required.
APPLICABLE SCOPE: The expanded food, fruits&greens, candies, cookies, dry fruits, melon seeds, fried food seeds, anti-damp bead, sugars, monosodium glutamate and tea leaf etc., APPLICABLE PACKING MATERIALS:
OPP/CPP, OPP/PE, PET/VMPET/PE and also other complex materials
