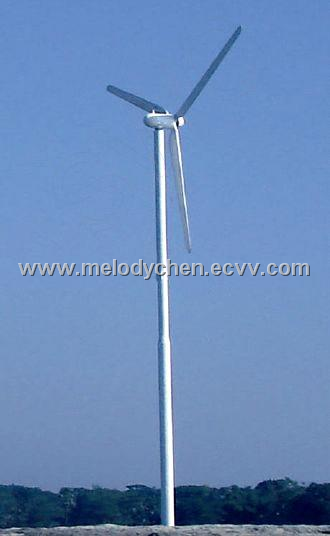

Wind Turbine (FD12-20kw-40-3 (20KW))

FD12-20kw-40-3 (20KW)
Type: 3 Blade Upwind
Rotor Diameter: 12.0 m
Start-up Wind Speed: 2.5 m/s (5.6 mph)
Cut-in Wind Speed: 3 m/s (6.7mph)
Rated Wind Speed: 12m/s (26.8mph)
Rated Power: 20k Watts
Maximum Power: ~ 25k Watts
Cut-Out Wind Speed: 15m/s(33.5mph)
Timing manner: automatically adjust the windward angle
Overspeed Protection: AutoFurl
Temperature Range: -40 to +60 Deg. C (-40 to +140 Deg. F)
Generator: Permanent Magnet Alternator
Output Form: 360VDC Nominal
