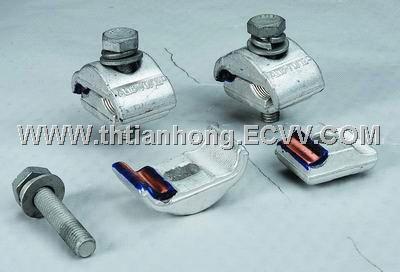

Capg Bimetallic parallel groove clamps with one bolt

For connection of aluminum conductors are made according to DIN 48201 and ACSR conductors



according to DIN 48204 with copper tap-off conductors according to DIN 48201



Body: high strength, corrosion-resistant, aluminium alloy (Al99.5) with hot forged

bimetallic sheet for copper tap-off

Bolts: steel 8.8, DIN 933, hot-dip galvanized

Nuts: steel 8, DIN 934 hot-dip galvanized

Conical washers: according to DIN 6796 corrosion-protected

Pressure pad: aluminium alloy, with spring washers DIN 127 hot-dip galvanize

Conductors are made according to DIN 48204 with copper and tap-off conductors are made

according to DIN 48201
