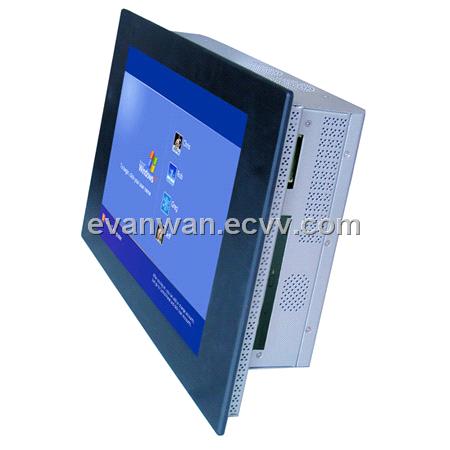

15 Inch Industrial Computer IPPC-1542

Detailed Product Description

IPPC-1542 is a advanced industrial computer platform with 15 inch lcd sceen,Intel / AMD / VIA CPU and all Mini-itx mainboard(170x170mm) compliant the industrial computer. our company is industrial computer manufacturer, So You could ask for OEM/ODM all kinds of industrial computer by us.

Industrial Computer >Industrial Panel Computer > 15" Industrial Panel PC Platform IPPC-1542

15" Industrial Panel PC Platform, Intel / AMD / VIA CPU Compatible

Features

High performance PC up to Pentium 4
15" XGA TFT LCD
Modularized system Design
Resistive Touch screen (optional)
2-slot PCI extension
NEMA 4/ IP-65 compliant front panel

System

Main Board: Standard Mini-ITX (170X 170mm )
Processor : Intel / AMD / VIA
Upgradable standard SDRAM / DDR / DDR2 memory
System Fan: 2* (60x60x 10mm ) cooling fan
Speaker: 2* 2W Stereo Speaker
OSD : Brightness, Contrast, H/V Position, Color, Phase, Clock, Management
Construction: Heavy duty steel & Aluminum (Front panel)
Dimensions: (WxHxD) With front panel: 436mm * 313mm * 116mm
Dimensions: (WxHxD) W/O front panel: 430mm * 307mm * 111 mm
Packing Dimension: 536 x 395 x 242 mm
NET weight: 10.5KG
Gross weight: 11.6KG
Open frame structure(optional)

LCD

Display Type : 15" XGA TFT LCD
Resolution : 1024 x 768
Max.color : 16M
Luminance : 250 cd/m2
View Angel : 120°(H) , 100°(V)
Pixel Pitch : 0.297 x 0.297 mm
Contrast Ratio : 450 : 1
Response Time : 16 ms
Power Consumption : 9.5W
LCD MTBF : 50,000hrs

Touchscreen(optional)

Type: Analog resistive type : 25VDC ≥ 20M Ω
Resolution: continuous
Light transmission: 80% or more
Controller: RS-232 interface( or USB option)
Power consumption:<5V @1mA
Surface hardness : 3H
Operating force : ≤100g
Life expectancy : 1 Million

Storage

CF Socket ( optional )
Interchangeable slim optical drive (Right side)
2.5" ATA / SATA high Capacity HDD (horizontal)

Environmental

Operating temperature: 32 °F~113 °F (0 °C to 45 °C)
Storage temperature: -4 °F~140 °F (-20 °C to 60 °C)
Storage humidity: 10% to 90%non-condensing
Vibration: 17 to 500HZ 1G PTP
Shock: 1G /peak( 11m sec)
Front panel protection: meet nema4&IP65(IPPC)

Power Supply

INPUT: 115~240 VAC,50/60Hz
OUTPUT: ATX 300W with active PFC +5V@ 12A , +12V@ 16A
ATX 150W / 350W power supply ( optional )

Mounting

Wall-mount/Desktop stand/swing arm
Meets standard VESA (75/ 100mm ) mounting

Ordering Information

IPPC-1542-300X	Industrial Panel PC with 15" TFT LCD with 300W power supply.
IPPC-1542T-300X	Industrial Panel PC with 15" TFT LCD/Touch screen, with 300W power supply.
OPPC-1542-300X	Open frame Industrial Panel PC with 15" TFT LCD and 300W power supply.
OPPC-1542T-300X	Open frame Industrial Panel PC with 15" TFT LCD/Touch screen and 300W power.
