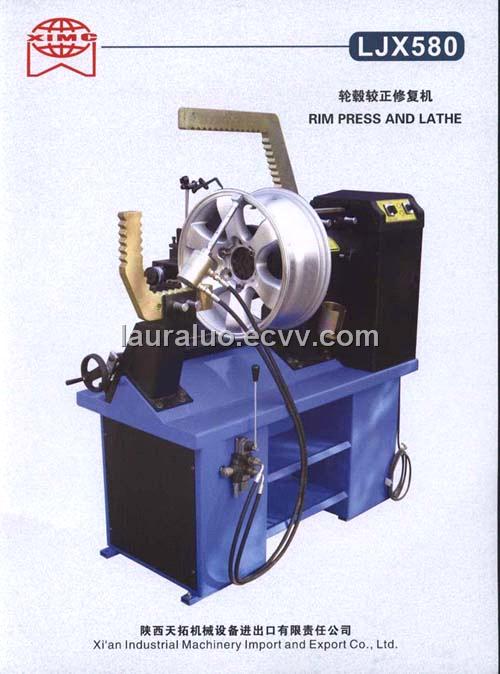

Rim press and lathe machine LJX580

Detailed Product Description

RIM STRAIGHTENING MACHINE
With LATHE System.

This unique machine is used to correct and straighten all kinds
of defected steel and alloy rims ranging from 10'' to 22'.

DIMENSIONS

Height 1250 mm
Width 1110 mm
Length 610 mm
Net Weight 370 Kg

MOTOR SPECIFICATIONS

Mechanic 0,55 kw, 1400 rpm, 0,75 hp,
3 phase - single phase, 220V - 380 V
Hydraulic 0,75 kw 1400 rpm, 1 hp,
3 Phase - single phase, 220V - 380 V
Sound 35 db

HYDRAULIC PISTON POWER

Total pressure = πr2 x 160 (Working pressure bar)
Total pressure = 3,14* (3,15 x 3,15) = 31,156kg
Total pressure = 31,156 x 160 = 4 984,96kg

Diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm.

As you have seen above formula you can have 5 tons of total pressure while working on our  LJX580 machines.

STANDARD ACCESSORIES LIST

1. 18 pcs rim attaching center
2. 1 pcs (mihengir) metal pointer
3. 7 pcs press tips
4. 3 pcs support axis for press tips
5. 1 pcs lever
6. 1 pcs lathe pen
7. 1 pcs upper support
8. 1 pcs lower support
9. 4 pcs Support pins
10. Flange nuts and bolts
