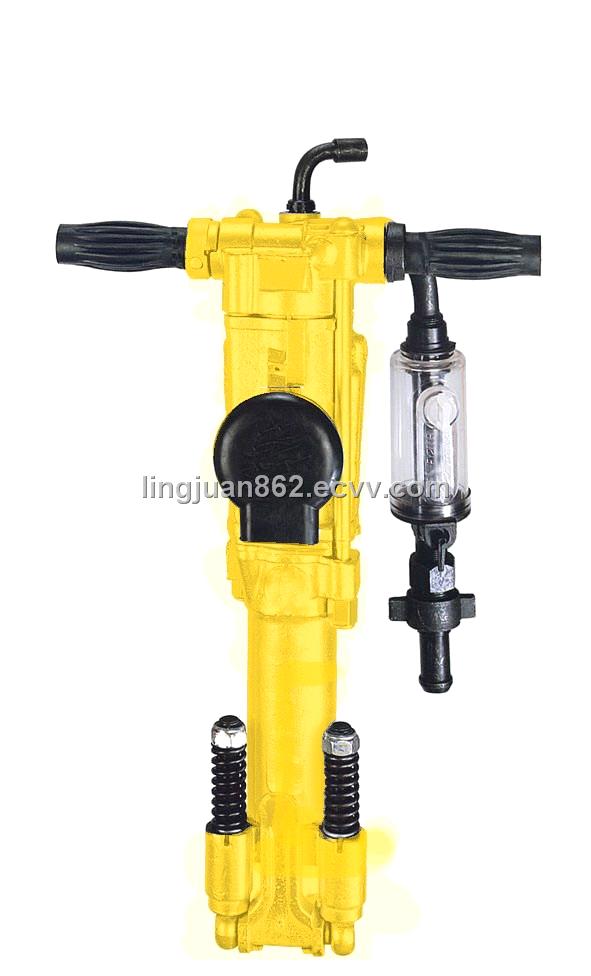

Yo18 Air Leg Rock Drill (YO18)

The rock drill is used for rock drilling, blasting holes and other drilling works in the quarries, small coal mines and other constructions.
  It's suitable for drilling of horizontal or inclined holes on the medium-hard and hard rock. When it's matched with air leg Model FT100, it can blast holes from different directions and angles.
  Blast hole diameter is between 36mm and 42mm. with an efficient depth from 1.5m to 2m.
  It's recommended to be matched with Model py-1.2/0.39 air compressor which is powered by Model RS1100 diesel engine. Other suitable air compressors can also be matched with this rock drill.


Weight                      18kg
Overall length                   550mm
Cylinder dia.                    58mm
Piston stroke                    45mm
Air pipe inner dia.                  19mm
Water pipe inner dia.                 8mm
Shank dimensions               22*108mm
Water pressure                3.9-5.9?05Pa
Air pressure                 at 3.9 MPa
Air consumption at3.9*105 Pa       1.2m3/min
Average speed (at 3.9*105Pa )            80mm

Impact energy(at4.9*105Pa )              24.5J
Torque(at4.9*105Pa )              7.85N.m
Airconsumption(at4.9*105Pa )      1.35m3/min
Average speed(at4.9*105Pa )             120mm
FY200 oil lubricator
Weight                     1.2kg
Oil capacity                    200mm
FT100 air leg
Weight                       11kg
Propulsion stroke                  810mm
Cylinder dia.                    52mm
Length                      1312mm
