(2) Scientz-12N series of stand-up freeze dryer
LGJ-12B freeze dryer is a set of mini-type table equipment , which is suitable for the freeze-dry test and smack production of lab samples.
This series has four types: Ordinary, Top-press, Multi-pipeline ordinary, Multi-pipeline Top-press.
Special：
●match the green environmental protection of international standard
●LCD manifestation、Chinese interface, show freeze-drying curve
●big openings of the cold trap, without coil pipe inside, have pre-freeze faction
●Imported refrigerant compressor, high capability of water-capture, low noisy
●all stainless steel wall, can bear corrosion, clean easily;
●transparence the clock cover type dry room, safe, keep a view
●stainless steel sample holder, can option the space between layers
●small cubage, convenient operation ;
●valve with nitrogen is optional.

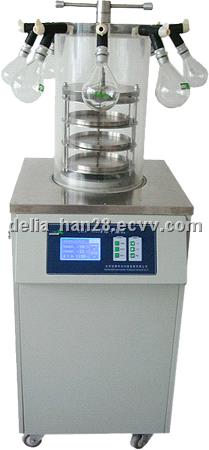

Scientz-12N multi-pipeline top-press
Temperature：<-50℃, -80℃ (optional)
vacuum :<15Pa
Freeze-dry acreage：0.09-0.18m2
Water-Capture Capability：3Kg/24h
Size: 560×460×(720+450)(mm)
Sample Tray：the diameter of material-dry tray is180mm, three layers; four layers; install the material about 1100ml(material thickness 10mm), or placed 155 bottles, the diameter of 22mm.
Freeze dried bottle：hang 8 the bottles at most, have four specification：1000ml、500ml、250ml、100ml, independent assortment accord of the needs, the process of freeze dry renew the freeze dried bottle, freeze dry series of the samples, good fast, short time, easy and simple to operate. Equip the freeze device, make the sample freeze a thin layer structure, make for the water sublimation.
Freeze dry time: about 24h (material thickness 10 mm) |
