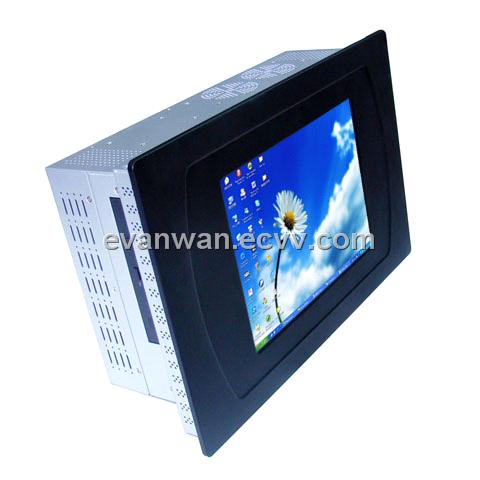

10.4 Inch Industrial PC IPPC-1042

Detailed Product Description

Industrial PC > LCD Industrial PC >10.4 Inch Industrial PC

10.4 Inch Industrial PC IPPC-1041

10.4" Industrial Panel PC Platform, Intel / AMD / VIA CPU Compatible

  Features

  • High performance PC up to Pentium 4
  • 10.4 " SVGA TFT LCD
  • Modularized system Design
  • Resistive Touch screen (optional)
  • 2-slot PCI extension
  • NEMA 4/ IP-65 compliant front panel
  System

  • Main Board: Standard Mini-ITX (170X 170mm )
  • Processor : Intel / AMD / VIA
  • Memory : Upgradable standard SDRAM / DDR / DDR2 memory
  • System Fan: 2* (60x60x 10mm ) cooling fan
  • Speaker: 2* 2W Stereo Speaker
  • OSD : Brightness, Contrast, H/V Position, Color, Phase, Clock, Management
  • Construction: Heavy duty steel & Aluminum (Front panel)
  • Dimensions: (WxHxD) With front panel: 390 mm * 260 mm * 118 mm
  • Dimensions: (WxHxD) W/O front panel: 387.6 mm * 257.6 mm * 113.3 mm
  • Open frame structure(optional)
  LCD

  • Display Type : 10.4" SVGA TFT LCD
  • Resolution : 800 × 600
  • Max.color : 262K
  • Luminance : 220 cd/m2
  • View Angel : 110°(H) , 80°(V)
  • Pixel Pitch : 0.264 x 0.264 mm
  • Contrast Ratio : 400 : 1
  • Response Time : 45ms
  • Power Consumption : 4 W
  • LCD MTBF : 20,000hrs
  Touchscreen(optional)

  • Type: Analog resistive type : 25VDC ≥ 20M Ω
  • Resolution: continuous
  • Light transmission: 80% or more
  • Controller: RS-232 interface( or USB option)
  • Power consumption:<5V @1mA
  • Surface hardness : 3H
  • Operating force : ≤100g
  • Life expectancy : 1 Million
  Storage

  • CF Socket ( optional )
  • Interchangeable slim optical drive ( Left side)
  • 2.5" ATA / SATA high Capacity HDD (horizontal)
  Environmental

  • Operating temperature: 32 °F~113 °F (0 °C to 45 °C)
  • Storage temperature: -4 °F~140 °F (-20 °C to 60 °C)
  • Storage humidity: 10% to 90%non-condensing
  • Vibration: 17 to 500HZ 1G PTP
  • Shock: 1G /peak( 11m sec)
  • Front panel protection: meet nema4&IP65(IPPC)
  Power Supply

  • INPUT: 115~230 VAC , 50 / 60Hz
  • OUTPUT: ATX 220W with active PFC +5V@ 13 A , +12V@ 16 A
  • ATX 300W power supply ( optional )
  Mounting

  • Wall-mount/Desktop stand/swing arm
  • Meets standard VESA (75/ 100mm )mounting
  Ordering Information

IPPC-1042-220X

Industrial Panel PC with 10.4 " TFT LCD with 220W power supply.

IPPC-1042T-220X

Industrial Panel PC with 10.4 " TFT LCD/Touch screen, with 220W power supply.

OPPC-1042-220X

Open frame Industrial Panel PC with 10.4 " TFT LCD and 220W power supply.

OPPC-1042T-220X

Open frame Industrial Panel PC with 10.4 " TFT LCD/Touch screen and 220W power.
