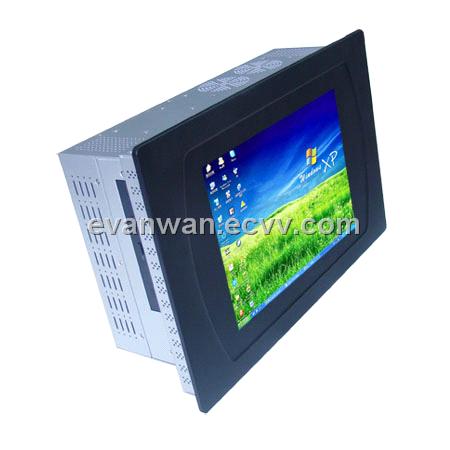

12.1" Industrial computer IPPC-1242

12.1" Industrial computer IPPC-1242

Detailed Product Description

Industrial computers > 12.1 Inch Industiral computer >12.1 Inches LCD Industiral computer

12.1 " Industrial Computer Platform, Intel / AMD / VIA CPU Compatible

Features

High performance PC up to Pentium 4
12.1 " SVGA TFT LCD
Modularized system Design
Resistive Touch screen (optional)
2-slot PCI extension
NEMA 4/ IP-65 compliant front panel

System

Main Board: Standard Mini-ITX (170X 170mm )
Processor : Intel / AMD / VIA
Memory : Upgradable standard SDRAM / DDR / DDR2 memory
System Fan: 2* (60x60x 10mm ) cooling fan
Speaker: 2* 2W Stereo Speaker
OSD : Brightness, Contrast, H/V Position, Color, Phase, Clock, Management
Construction: Heavy duty steel & Aluminum (Front panel)
Dimensions: (WxHxD) With front panel: 390 mm * 260 mm * 11 8 mm
Dimensions: (WxHxD) W/O front panel: 387.6 mm * 257.6 mm * 11 3.3 mm
Open frame structure(optional)

LCD

Display Type : 12.1" SVGA TFT LCD
Resolution : 800 × 600
Max.color : 262K
Luminance : 400 cd/m2
View Angel : 140°(H) , 110°(V)
Pixel Pitch : 0.3075 x 0.3075 mm
Contrast Ratio :500 : 1
Response Time : 35 ms
Power Consumption : 7.8 W
LCD MTBF : 50,000hrs

Touchscreen(optional)

Type: Analog resistive type : 25VDC ≥ 20M Ω
Resolution: continuous
Light transmission: 80% or more
Controller: RS-232 interface( or USB option)
Power consumption:<5V @1mA
Surface hardness : 3H
Operating force : ≤100g
Life expectancy : 1 Million

Storage

CF Socket ( optional )
Interchangeable slim optical drive ( Left side)
2.5" ATA / SATA high Capacity HDD (horizontal)

Environmental

Operating temperature: 32 °F~113 °F (0 °C to 45 °C)
Storage temperature: -4 °F~140 °F (-20 °C to 60 °C)
Storage humidity: 10% to 90%non-condensing
Vibration: 17 to 500HZ 1G PTP
Shock: 1G /peak( 11m sec)
Front panel protection: meet nema4&IP65(IPPC)

Power Supply

INPUT: 115~230 VAC , 50 / 60Hz
OUTPUT: ATX 220W with active PFC +5V@13 A, +12V@16 A
ATX 300W power supply ( optional )

Mounting

Wall-mount/Desktop stand/swing arm
Meets standard VESA (75/ 100mm )mounting

Ordering Information

IPPC-1242-220X	Industrial Panel PC with 12.1" TFT LCD with 220W power supply.
IPPC-1242T-220X	Industrial Panel PC with 12.1" TFT LCD/Touch screen, with 220W power supply.
OPPC-1242-220X	Open frame Industrial Panel PC with 12.1" TFT LCD and 220W power supply.
OPPC-1242T-220X	Open frame Industrial Panel PC with 12.1" TFT LCD/Touch screen and 220W power.
