Detailed Product Description

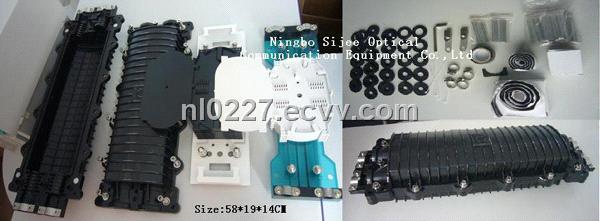

Fiber Optic Splice Closure, Fiber Optic Closure, Fiber Optic Joint Box, FOSC
Purpose: aerial, direct-burying, wall-mounting, Pipeline laying way
external dimensions: 465mm*188mm*120mm (Horizontal type)
500mm*250mm (Erect type)
Weight: 3kg(Horizontal type)
2.1kg(Erect type)
Structure: open structure / Split Type (quick installation type)
Material: ABS/PC
Components: Seal tape, Insulation tape, Nylon tie, optical cable heat shrinkable sleeve, mental hook, seal fittings, numeral bar, retaining ring
Environmental temperature: -40 to +65 degree celsius
Seal Performance: After the closures are sealed, then pressurized up to 100KPa?KPa in water, immersed in 15 minutes, there are no air bubbles.
Re-encapsulation Performance: The closures are pressurized up to 100KPa?KPa in water, immersed in 15 minutes, there are no air bubbles
Maximum capacity: 144cores
Span-life: 25 years.
It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network
