rfid clear disk tag

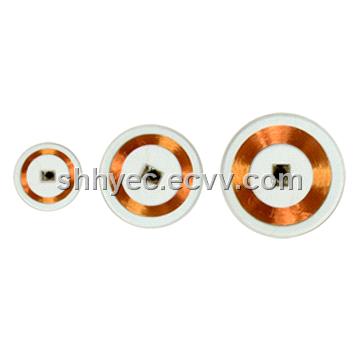

Clear tags are finely laminated with PVC or POLY, For Clear Disc Tag, it is transparent, you can see the COB and antenna directly. PVC Disc Tags are more steady under high temperature compared with Clear Disc Tag.
Disc Tags can withstand harsh environments to suit your different applications, such as property tracking, anti-counterfeiting, intendance of the Patrol guard and so on. HF and LF chips are optional for this product. And we supply Disc Tags in different dimensions.
Specification:
1)Optional Chips:
HF Chips:Mifare 1 S50; Mifare Ultralight; I CODE SLI;
LF Chips:EM4100; GK4001(EM compliant) Unique -read only        64bits; Atmel T5557; Hitag series;
2)Serial Size:17/18/20/22/25/30+/-0.2mm
3)Thickness:1 mm for transparent tag+/-0.1mm
      1.5 mm for PVC tag+/-0.1mm
4)Operating frequency:13.56MHz,+/-150KHz
           125KHz+/-6Hz
5)Storage:-30 to 65C,Shelf life of 2 years
 Operating:-30 to 60C
