wenling jinxing capacitors co;ltd

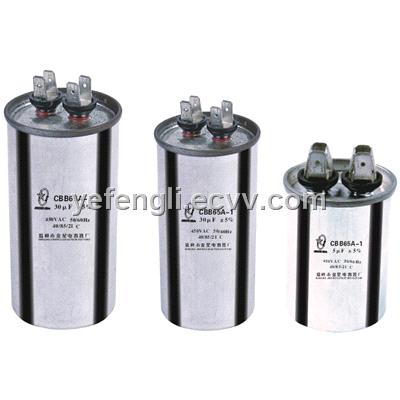

air conditioner capacitors

Detailed Product Description

1. Capacitance: 5uF - 70uF 2. Rated voltage: 250VAC / 370VAC / 450VAC 3. Capacitance deviation: +/- 5%, +/-10%
The product is equipped inside with reliable explosion-pro of equipment and is highly safe. With its good self-healing characteristic and long life-span, it is widely used for air-conditioner, refrigerators, generators, illuminating lamps, etc.
Technique Data:
1. Capacitance: 5uF - 70uF
2. Rated voltage: 250VAC / 370VAC / 450VAC
3. Operating temperature: -40癈 to +70癈
4. Capacitance deviation: ?5%, ?0%
5. Testing voltage: between leading-outends: 2.0UR, 10S no breakdown between leading-out end and shell 2200VAC, 10S no breakdown
6. Insulation resistance: between leading-out end shell: >=3000M.uF
7. Between beading-out end and shell >=1000M
8. Tangent of loss angle: <=0.002
9. Specifications can be supplied according to the customers' special need
