12mm LED Perimeter Display

Detailed Product Description

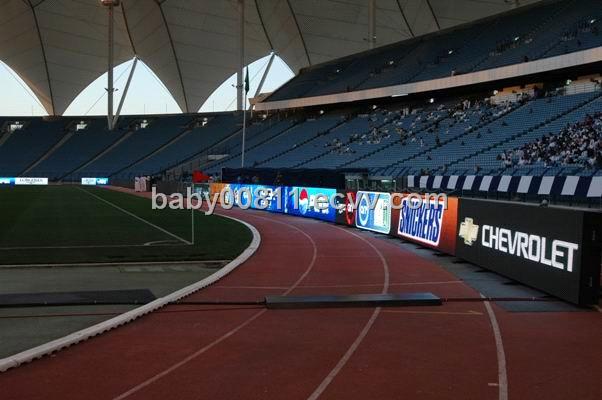

The Sports Perimeter Display is most commonly used for advertising on the
    perimeter/boundary of a football ground, cricket ground, baseball ground, etc
    for outdoor purposes and also indoor as well for basketball, ice hockey, tennis
    court,. We have the experience of providing both indoor and outdoor perimeter
    displays. The below is an example of the technical specs with reference to a
    12mm outdoor led perimeter display. For more information on other pixel pitch,
    drop us an e-mail and we will reply with full details.

Part B: Display Technology Data
(1)LED Parameter
Sequence	Led	Wavelength		Luminosity	Chip Manufacturer
1	Red	620-630 (nm)		450 (mcd)	Taiwan
2	Pure Green	520-525 (nm)		1800 (mcd)	CREE
3	Pure Blue	465-470 (nm)		350 (mcd)	CREE
(2)Module Parameter
Sequence	Item		Parameter
1	Pitch (mm)		12
2	LED Standard		5 Oval Lamp
3	LED Arrangement		2R1G1B
4	Brightness (cd/m^2)		≥5000
5	Density (Real) (dots/m^2)		6944
6	Density (Virtual) (dots/m^2)		-
7	Module Size (mm)		(L)=192; (H)=192 ;
8	Module Resolution (dots)		16*16
9	Cabinet Size (mm)		(L)=960 ; (H)=960 ; (W)=150
10	Resolution/Cabinet		80*80
11	Cabinet Material		Aluminum/Iron Cabinet with locks and with adjustable stand
12	Waterproof Material		Silicone WITH SOFT MASK
13	Waterproof Size		Display Size
14	Angle-Level (angle)		110 (Right/Left)
15	Angle-Vertical (angle)		40 (Up/Down)
16	Best-Vision-Distance (m)		10-160
17	Gray Grade (Rank)		≥16,348
18	Display Color (Color)		Full Color (16.7m)
19	Display Mold		Virtual Image Control
20	Drive Mode		Static, Constant Current Driver
21	Control Mode		Synchrony Transfer
22	In-Interface		RS232
23	Connecting Series		VGA/NTSC/PAL
24	Cabinet Weight (kg/pc)		55
25	Max Power Consumption (KW/m^2)		750
26	Avg Power Consumption (KW/m^2)		400
27	Life Time (hr)		100,000
28	Voltage (V)		AC: 220 /380 ±10 %, 50 Hz
29	Control Distance (m)		< 100
30	Protection Level (IP)		65
31	LED Parameter		DIP 346
32	Time (hr)		> 10,000
33	Maintain		Front/Back
34	Temperature (℃)		-20 ~ 50
35	Relative humidity (RH)		10% ~ 95%
36	Software		Windows 98, XP,2000, 2003 etc.

Function and Technology Character
    (1) Multiplied file formats, such as AVI, MOV, MPG,
    DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and
    VGA. There are also interfaces for Sound signal and video signal.
    (2) 16,348 grade grey control system and the color is
    over 16.7 millions, and the brightness, contrast, saturation, chromo can be
    adjusted by manual and sensor, whose scope is 256 grade.
    (3) Show all kinds of word, text, graph, picture,
    video, 2-dimention, 3-dimention cartoon and other information with your PC does
    synchronously.
    (4) Line-Double technology is adopted for the picture
    adjustment.
    (5) Can be connected with PC and the web net and show
    the content, and also can be controlled remotely via VPM+ADSL.
    (6) Can be used outdoor in all kinds of weather, and
    excellent capability of antisepsis, waterproof.
