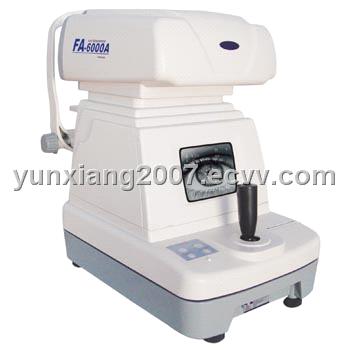

Ophthalmic Instrument

Detailed Product Description

Enlarged measurement range: It allows you to make measurement over a broad measurement range.This means you can even measure extreme myopia eye. Display screen: The CRT Monitor make the measurement results and setting image display on an easy-to-view screen. AUTO PD measurement: The PD will be automatically calculated after measurement. Easy, one-hand control: All operations, including UP\Down, Right\Left, Forward\Backward and Start can be easily controlled with one hand through the control stick.

FA-6000A Specifications
Measuring Range	Spherical -20∽+20D(VD=12)0.125Dsteps
	Cylinder -8∽+8D 0.125Dsteps
	Axis 0∽180°，1°steps
Pupil Distance	45∽85mm, 1mm steps
Vertex Distance	0mm, 12mm, 13.75mm
Min.Pupil Size	?2.2mm
Chart	Auto fog
Display	5″CRT Monitor
Print	Thermal Printer
Power Supply	100∽120v/200∽240v, 50/60Hz
Dimensions	484(L) X282 (w) X440 (H) mm·mm·mm
Weight	∽20kg(44 lb)
