Hand Pushed Motorized Spraying Machine

Range of application

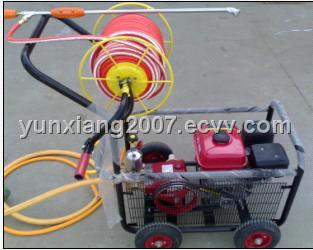

This kind of spraying machine is composed by triplex piston pump, gasoline engine, the rack, spray parts, coiling pipe holder, spraying hose and so on supported items. It is convenient for the worker to give field shift using cart type spraying machine. It owns compact structure, convenient to adjust the pressure, stable current capacity, reliable to use, convenient and quick and so on merits. It is mainly used to spray liquid medicament, prevent crops' plant disease as well as the city virescence. It may be used in the field crop, the orchard, the vegetable plot, the flowers, the trees and so on.

Technical specification
Dimension of the machine: 850*440*820mm (Length*Width*Height)
Weight: 40 Kg
Support drive: Four stroke gasoline engine
Consumed power: 2.5HP
Liquid pump pattern: Triplex piston pump
Liquid pump current capacity: 6-18L/min
Working speed: 300-1000r/min
Working pressure: 1.5-3.5MPa
Type of drive: Belt transmission
Spray parts: PQ10 adjustable spray gun
Working width: Above 10m
Spraying hose: Diameter8mm*20m
