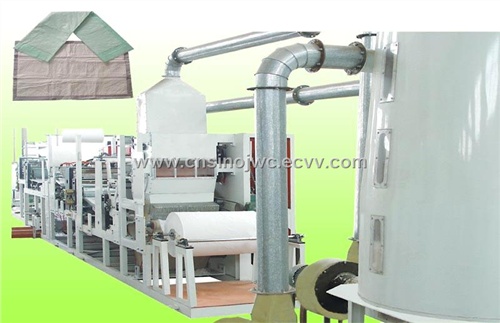

Puppy pad Machine

Main functions features:
1.The products made of fluff are ultra-thin and wrapped with tissue.
2.Fluff core formed after embossing, the thickness can be adjusted
3.SAP can be supplied at a fixed amount in designed locations or in a mixed way.
4.It can produce different types of products, such as puppy pads, operation pads, lying-in women pads, baby pads and some other pads of extra width.
5.After molding, the products are three folded and output square-typed.
6.The key parts adopt air cylinder for press and the machine can be adjusted without stopping.
7.All driving uses convertible frequency with single gear case and imported synchronous transmission belt.


Specifications
Main technical parameters:
1.Type: JWC-CWD
2.Power supply: 380v 50HZ
3.Installation capacity:50KW(450mm*600mm)
4.Productivity: 40M/min
5.Qualification rate:>= 98%
6.Product specification:(450-1800) mm*(300-1000) mm (L*W)
7.Overall Dimensions:(18*5*3) M (L*W*H)

Post Date:	11/9/2008
Expiry Date:	11/4/2009
Other Price Terms:	discuss personally
