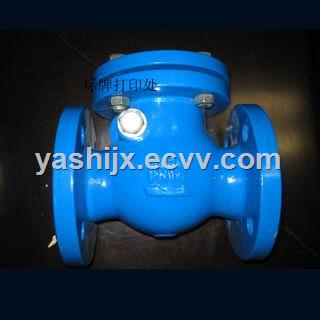

check valve

Available Medium:X-water.T-Water.Steam
Working Temperature:X<=50.T<=200 degree centigrade
Flange:DIN2533
Face to face dimensions:Din3202F6
         H44T-10         H44X-10
Body.Bonnet:  Gray cast iron      Gray cast iron
Seat:     Cast Brass        Cast Brass
Disc:     Gray castIron+Brass   Gray castIron+Brass
Hanger:    Ductile Iron       Ductile Iron
Hanger Pin:  Carbon Steel       Carbon steel
DIMENSIONS
DN   L    kg
50   200   13.6
65   240   20.9
80   260   26.5
100  300   31.8
125  350   44.9
150  400   71.2
200  500   93
250  600   135.5
300  700   188
350  800   275
400
