Annso Technology Co.,Ltd

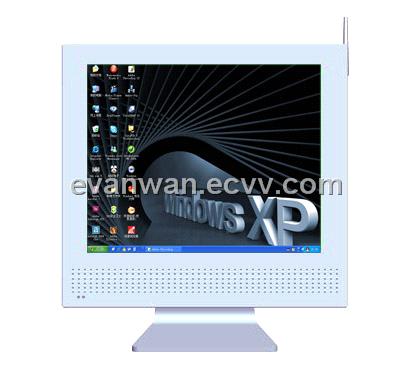

17 Inch Lcd All in One Panel Pc Ppc-1705
all in one Computers,all in one Computer ,17 inch desktop all in one computer ,17 Inch All-in-one computer PPC-1705
The display is the computer .The entire computer, including a VIA C7 based platform, s lim type optical drive, hard disk, card reader, speakers integrates inside a dazzling display. It combines all your life, music, photos, movies, email.... within a monitor-based space. You may enjoy the space you saved, the enchanting screen you earned and the comfortable user interface you are familiar to.
CPU
VIA C7 1.5GHz or Eden 1GHz Processor
Chipset
VIA CN700 + VT8237R Plus
Memory
1x DDR2 DIMM Socket accept 533/400MHz up to 1GB
BIOS
Award flash BIOS
HDD
3.5" x1 and 2.5" x 1
Optical Device
Slim CDROM/DVDROM/Combo(DVD+CDRW)DVD ± RW
Display
Display Type : 17" SXGA TFT LCD Resolution : 1280 × 1024 Max.color : 16.7M Luminance : 300 cd/m2 View Angel : 178°(H) , 178°(V) Pixel Pitch : 0.264 x 0.264 mm Contrast Ratio : 1000 : 1 Response Time : 5 ms Power Consumption : 21.9 W LCD MTBF : 50,000hrs
Audio
Build-in 2 x 2W stereo speakers8237R Plus Audio controller w/VT1613 Audio Codec for 2 channel output
LAN
Single LAN onboard: VT8237R Plus integrated 10/100 Fast Ethernet w/VT6103(PHY), full duplex with RJ 45 connector onboardCompliant with IEEE 802.3x
USB Port
Max . 6x USB2.0 ports
VGA Port
Integrated VIA UniChrome Pro 2D/3D Graphics & Video Processor with MPEG-2 Decoding Acceleration
Multi-Media Card Reader
CF/Micro Drive/MS Pro(Due)/SM/SD/(RS)MMC/XD(Optional)
Wireless LAN
32bit PCI card Interface. (Optional),Support 64 and 128 bit WEP Encryption802.11b:11Mbps Up to 180m(Outdoor), 35- 60 m(Indoor)802.11g:54Mbps up to 50m(Outdoor),20m(Indoor)
Expansion Slots
1 x PCI slot
Back panel I/O Port
1xPS/2 Keyboard: 1xPS/2 Mouse;1xRJ45;2xusb 2.0 ;1xParallel;3xserial;1x VGA;1xAudio I/O;1xPower switch;1x DC jack
Watch Dog
SIO Chip Build in , programmable 1-255
Touch Screen
Internal USB or RS-232 interface controller (optional)Type: Analog resistive type : 25VDC ≥ 20MΩResolution: continuousLight transmission: 80% or morePower consumption:<5V @1mASurface hardness : 3HOperating force : ≤100gLife expectancy : 35 Million
Power Adapter
*internal 120W power board*External AC adapter ,Input: AC/100-240V(50/60Hz)2.5A ,Outpu t : DC/19V.7.5A 140W
Safety
CE/FCC
Measurements
Length:41.9 cm; Wide:36.8cm;Thick:9.1cm (Without the stand)
Weight
PPC-1705-10
17" VIA Eden 1.0GHz all in one lcd pc ( fanless solution )
PPC-1705T-10
17" VIA Eden 1.0GHz all in one lcd pc , with Touch Screen ( fanless solution )
PPC-1705-15
17" VIA C7 1.5GHz all in one lcd pc
PPC-1705T-15
17" VIA C7 1.5GHz all in one lcd pc , with Touch Screen
