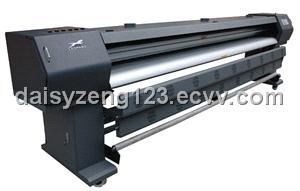

Large format solvent printer L3304F

Detailed Product Description

Model	L3304F
Print Width	3.2m
Print Head	KONICA (made in Japan)
Print Format	KM512LN(42pl)
Print Head Life	About 3 years
Print Head Quantity	4
Print resolution	High Quality 720dpi
Print Speed( m²/h)	Draft Mode:80 m²/h
	Standard Mode: 40 m²/h
	High Quality Mode:22 m²/h
Head Height	2-4mm,adjustable
Print Mode	Uni/Bi Direction
Heater	Front,Middle and Back Equipped
RIP Software	Wasatch/Photoprint/Maintop
Printhead controls	Printhead temperature and voltage are software adjustable
Ink type	Solvent/Eco-solvent
Media type	PVC banner,Vinyl,Coating Film,Mesh,One way vision,Fabrics,Paper and Etc
Interface	PCI High Speed Card
Packing Size(LxWxH)	4460x800x1340mm
Weight	508kg
Auto Feeding and Take-up	Equipped
Printhead Cleaning	Positive Pressure Print Head Cleaning
Power	Single Phase,220V+/- 10%>10A,50/60 HZ
Work Environment	Temperature 18℃-28℃
Humidity	40%-60%RH
