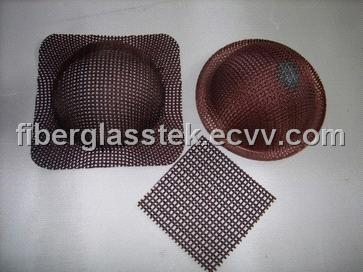

Silica Mesh Casting Filter

Silica Mesh Casting Filter

Filtering with Silica Mesh Casting Filter is an effective way to remove inclusions and slag from steel, copper-based metal alloys, aluminium, gray, malleable, white, compacted graphite and ductile cast iron. Able to withstand pouring temperatures up to 1650℃ (3000℉), filter shapes help trap inclusions and reduce turbulence during the casting process. On contact with molten metal, the surface fibers of the filter form a sticky layer of fayalite. This allows the mesh filter to remove even micron-sized inclusions from the beginning of the pour to the end.

Silica Mesh Casting Filter is particularly effective at extracting dross, slag, refractory particles and nonmetallic inclusions.

Applications

Standard Mesh Sizes: 1.5×1.5,2.0×2.0,2.5×2.5mm.

Various flat sheets, pressed shapes are customized on request.
